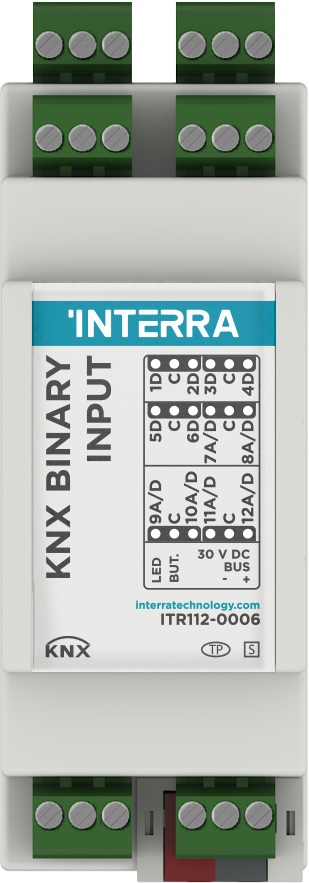

12Ch Binary Analog Input

ITR112-000X

ITR112-000X series KNX Binary Input device is the newest product of Interra Technology. The Interra KNX Binary Inputs are designed for using at mainly in interior areas of buildings. The Interra KNX Binary Input serves as interface for operation of KNX systems via conventional buttons/switches or coupling of binary signals (signal contacts). The devices feature a push-button for manual operation for each input. Input states can be simulated during manual operation, so that the conventional push buttons, switches or floating contacts do not need to be connected for commissioning purposes. The connection to the KNX Binary Input is established using the front-side bus connection terminal. All versions have a rear connector with 12 digital inputs that can be connected to buttons and used for switch sensor, switch/dimming sensor, shutter sensor, value/forced operation, control scene, RGB colour control, RGBW control, mode selection and command sequence. Interra KNX Binary Input has 5 logic function blocks and can be set to the logical relation AND/OR/XOR. Each block can control 5 output objects.

Category	Value
Catalog Item Name	12Ch Binary Analog Input
Application Program Name	ITR112-000X_Binary_Analog_Input
Order Number	ITR112-000X
Rail Mounted	Yes
Manufacturer Website	Interra
