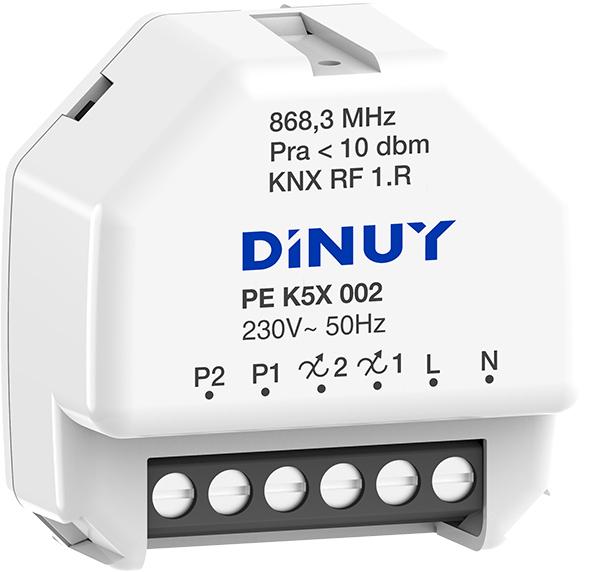

2-channel switching actuator/blind actuator

- KNX-RF S-Mode Switching Actuator which can work as:
· 2-channel Switching actuator.
· 1-channel Blind/Shutter actuator.
- It has 2 inputs for conventional pushbutton, which can be configured independently, through the ETS: Switching, Dimming, Blind/Shutter Control, Scenes or Value sending.
- The 2 outputs can be configured as:
· 1 blind/shutter channel: control of Roller Shutters/Awnings, Venetian Blinds or Venting Louvers.
· 2 switching channels: control of 2 individual loads.
- In case it is configured as 1-channel blinds/shutters actuator, the following alarms and functions are available: Wind alarm, Rain alarm, Frost alarm, Sun Protection function, Scene control and Forzed function.
- If it is configured as 2-channel switch actuator, the following functions are available in each channel: Timer, Preset value, Scene control, Logical functions, Forzed and Threshold function.
