2/3M Push Button Module

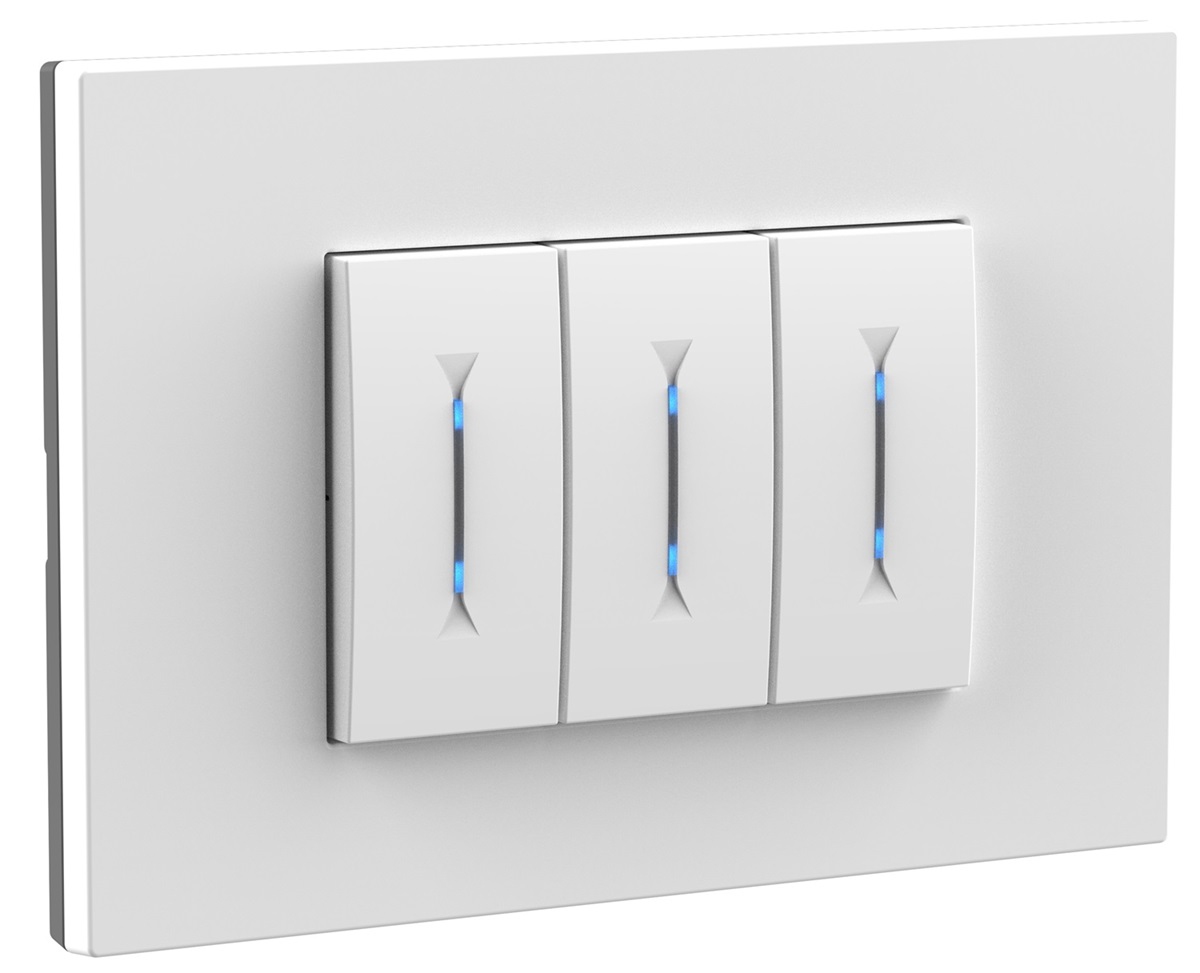

Mutlusan KNX Modular Series is a KNX push-button device designed for controlling building automation functions through its built-in buttons and RGB status LEDs. It provides an intuitive user interface for KNX systems without requiring external input connections. The Modular Series is available in 2M and 3M versions. The device includes 6 buttons, each of which can be configured independently or as rocker pairs. Depending on the selected operating mode, the buttons support the following functions: Push Button Mode: ● Switching ● Dimming ● Shutter control ● Sending values ● Scene control ● Counter Rocker Mode: ● Switching ● Dimming ● Shutter control Each button includes its own RGB LED, which can be configured for status indication or visual feedback. The Modular Series also includes logic function blocks, allowing basic logical combinations such as AND, OR, or XOR to be applied to button events. In addition to these logic capabilities, it fully supports the following functions: ● Switch (ON/OFF) ● Scene ● Value It is compatible with ETS5 and higher versions and all device settings, including button functions and LED behavior, are fully configurable via ETS.
