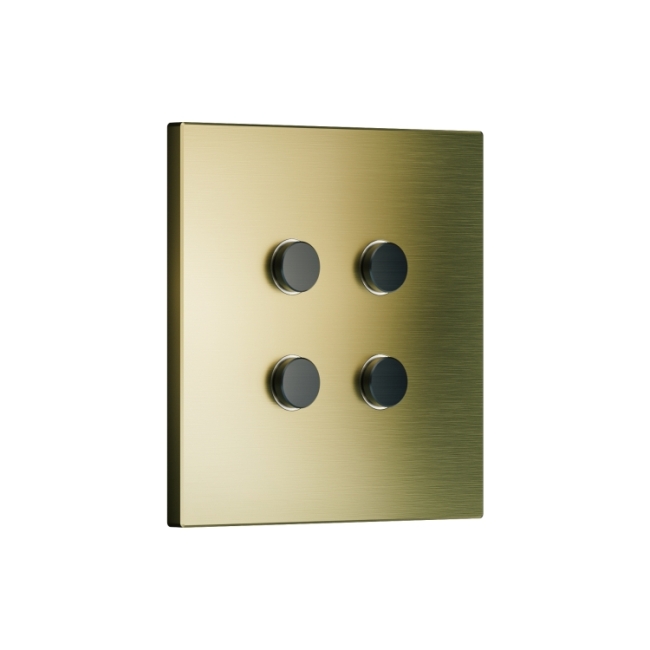

4 Buttons KNX Proxima series pushbutton

ORDERING CODE EK-EZ2-TP-4-... DESCRIPTION The Ekinex® Proxima series 4-button combines advanced functionality and convenience to simplify room management. It allows you to control on/off switching, adjust light intensity, control motorised blinds and other programmable functions, and adapts to your needs by separating short and long presses. For added convenience, an integrated temperature sensor turns the push-button into a climate controller that keeps the room temperature at the right level at all times. RGB LEDs on each button provide a subtle individual touch, while KNX technology ensures optimal integration into automation systems. Designed for wall mounting in flush boxes, it is the ideal choice when you want to combine technology and simplicity with timeless design. TECHNICAL DATA 30 Vdc power supply via KNX bus Power consumption from the bus < 17 mA DELIVERY The delivery includes a terminal for connection to the BUS line and site protection. ACCESSORIES The following accessories are available as add-ons and must be ordered separately: Proxima series keys EK-TTP-4-... Square magnetic plate EK-PQA-1-... Mounting bracket EK-SMP-71-1 Optional: mounting bracket EK-SMP-Q-1 (check compatibility with flush box). FUNCTIONS / FEATURES 4-button version (up to 2 different functions can be configured) RGB LED for each freely programmable key Integrated temperature sensor Room thermostat function Connection to bus line via KNX terminal Recessed wall mounting on round or square box IP20 degree of protection (installed) CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the device's application manual. ETS5 or later versions are required for configuration and commissioning. Application programme for ETS: APEKEZ2TPX##.knxprod (## = version).
