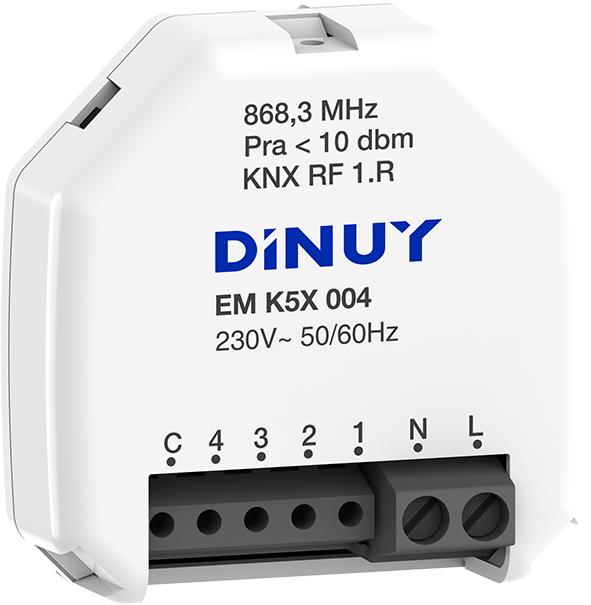

4-channel Universal Interface

• Wireless KNX RF S-Mode transmitter with 4 Analog or Binary Inputs.
• The Universal Interface incorporates 4 inputs, each of which can be parameterized individually through the ETS:
· Switch.
· Dimmer.
· Multiple Switch.
· Sequential Switch.
· Shutter control.
· Scenes management.
· Sending of Fixed/Forced Value.
· Counter.
· Temperature sensor, connecting the DINUY temperature probes ST KNT 001 or 002.
· Movement Detector, connecting the DINUY sensor “DM KNT 004”.
• It also incorporates up to 4 independent Thermostats for the control of Heating and / or Cooling of 4 different zones.
• Programming and commissioning by ETS5 or later.
• Perfect solution for using in conventional installations without placing KNX bus cables.
• Communication with the KNX Bus must be carried out using a KNX / KNX RF S-Mode media coupler.
