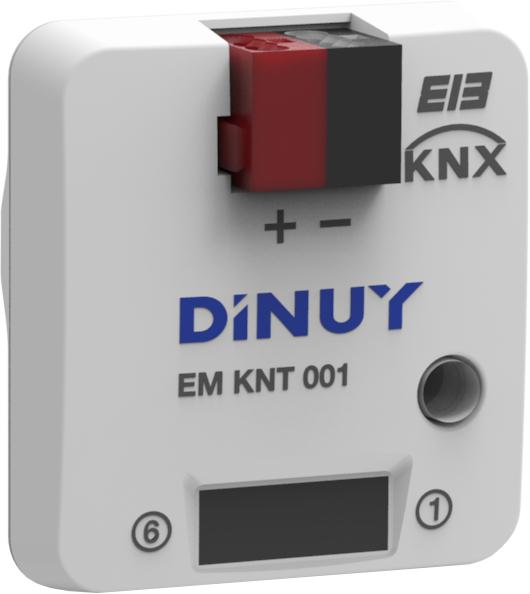

4-INPUT/OUTPUT BINARY INTERFACE

• The 4-channel Universal Interface is equipped with 4 independent channels which may be used as 4 binary Inputs or as 4 LED Outputs, depending on the parameterization with the ETS.
• Each channel may be used depending on the parameterization by the ETS:
· Input: the interface can evaluate at its potential-free inputs up to 4 pushbutton/switch states and send the corresponding telegram according to the configured setting as: Switch, Dimmer, Multiple Switch, Sequential Switch, Shutter/Blind control, Scene Control, Fixed/Forced value or Counter.
· Output: the 4 channels can control up to 4 low current LEDs as independent outputs.
• Flush-mounting in standard universal box, behind the pushbutton/switch.
• Supply from the Bus. External supply is not required.
• Built-in KNX BCU (Bus Coupler Unit).
• Programming and commissioning by ETS4 or later.
