4/8-fold KNX 20venti series pushbutton

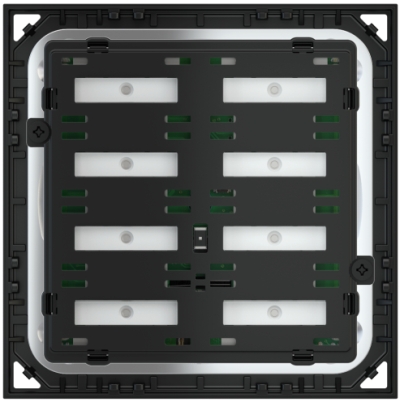

DESCRIPTION The Ekinex® 20venti series 8-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated temperature sensor, the button can act as a temperature controller for a room or zone. RGB LED for each rocker. The switch has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box. Delivery includes a terminal block for connection to the bus and two pairs of fixing screws. The metal support for wall mounting box and the plastic adapter have to be ordered separately. The following accessories are available to be ordered separately: 8 rectangular 30 x 15 mm plastic keys with or without backlit text/symbol square plate of the Deep and Surface series with 60 x 60 mm window FUNCTIONS / FEATURES 8 fold version (possibility to configure up to 8 independent functions) RGB LED for each freely programmable button Integrated temperature sensor Integrated proximity sensor Room thermostat function Plastic casing Connection to bus line with KNX terminal block Wall-mounting installation on round or square wall box IP20 protection degree (installed) 30 Vdc power supply by KNX bus CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKE2ETP##.knxprod (## = release).
