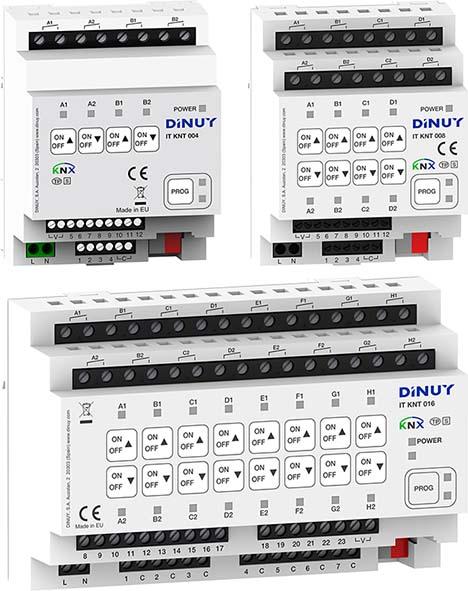

4ch/8ch/16ch Switch/Blind Actuator with 12/12/23 Analog/Digital Inputs

• KNX Multifunction Actuators that can work as: • IT KNT 004 (new version): 4-channel Switching Actuator or 2-channel Blinds/Shutters Actuators. • IT KNT 008: 8-channel Switching Actuator or 4-channel Blinds/Shutters Actuators. • IT KNT 016: 16-channel Switching Actuator or 8-channel Blinds/Shutters Actuators. • High load capacity, with 16A built-in relays, as well as a zero-crossing-point control, which allows switching very high loads, even capacitive type. • Incorporate 12 / 12 / 23 Inputs: • IT KNT 004_008: 8-Binary Inputs + 4-Binary/Analog Inputs • IT KNT 016: 16-Binary Inputs + 7-Binary/Analog Inputs • These inputs can be independently parameterized through the ETS Software: • Binary Input: allows the connection of a conventional voltage-free binary sensor or switch. • Analog Input: allows the connection of a DINUY temperature probe (ST KNT 001 or ST KNT 002). • Incorporates a front keypad for independent manual control of each output, as well as status indicator LEDs. • Allows to enable and configure up to 4 / 4 / 7 independent Heating and / or Cooling Thermostats. • It incorporates 8 / 8 / 16 Logic Functions, Centralized Control, Scenes, Time Function, etc. • Possibility of connecting different phases in each output channel. • Integrated Bus Coupling Unit (BCU). • DIN-rail mounting, 4 / 4 / 8 modules wide. • Programming and commissioning via ETS5 or later versions.
