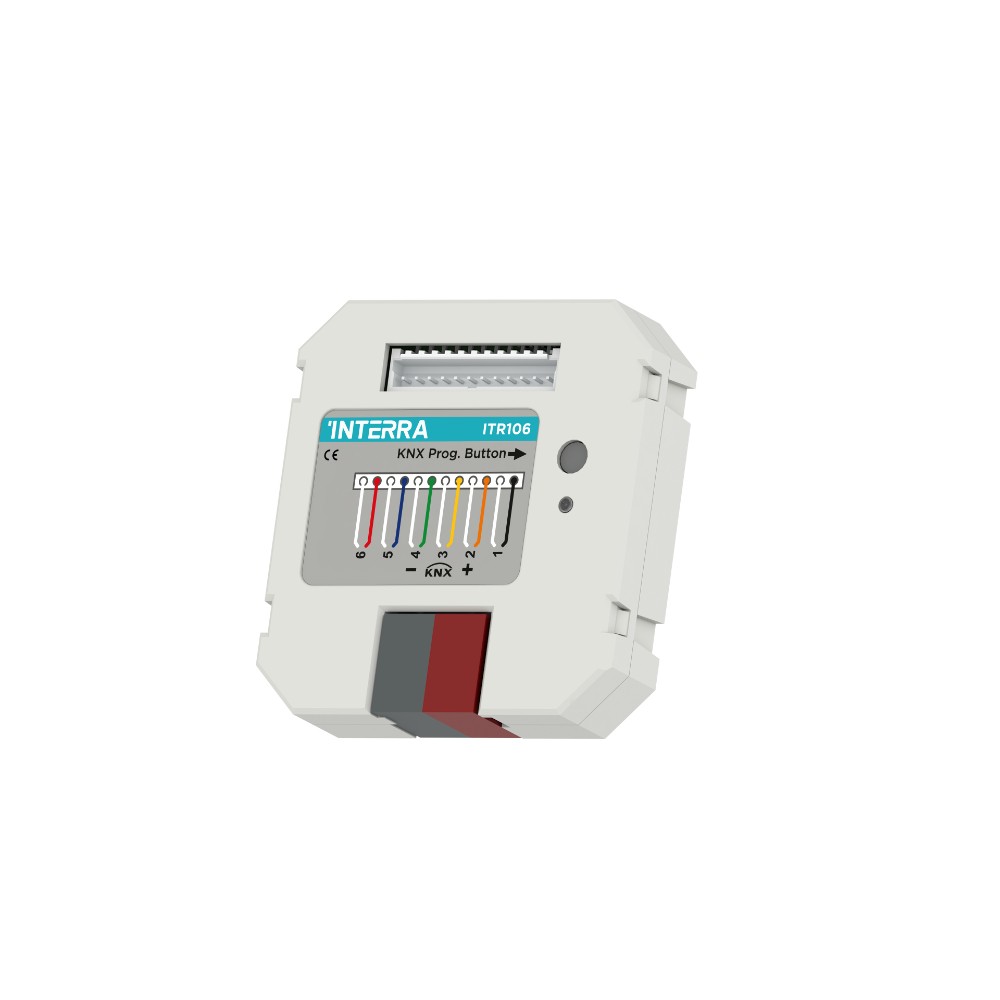

6-Channel Binary Input Module

Interra KNX Binary Inputs serve as an interface for the operation of KNX systems via conventional pushbuttons, switches, or floating contacts as well as for processing binary signals. They can be configured as sensors, switches, or potential-free push buttons. In addition, weather data can be transmitted to the KNX bus for further evaluation via an appropriate weather sensor. The Binary Inputs are powered via the KNX and do not require an additional power supply. Main Functions: Depending on ETS configuration and settings, the product features will be different. Available functions are: • Switching • Toggle • 2 Channel • Dimming • Shutter/Blind • Value Operation Most functions only need one input, and therefore each input might be assigned a different function. However, there are also some functions that use two inputs, such as “Dimming with 2 buttons” and “Shutter/ Blinds with 2 buttons”.
