8 out switch actuator - 4 blinds

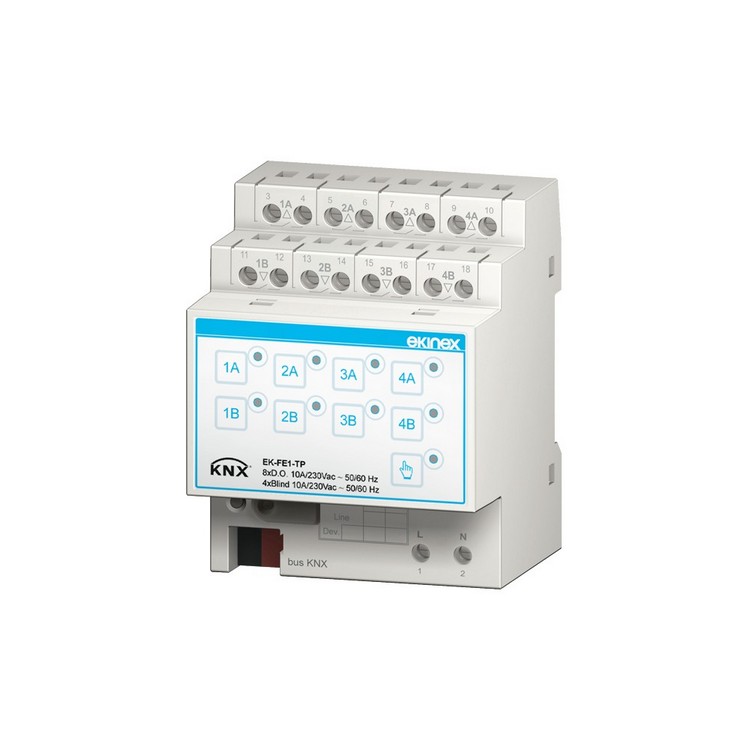

ORDERING CODE EK-FE1-TP DESCRIPTION 8-fold KNX binary output for switching and control of loads or 4-fold KNX actuator for control of drives for motorized blinds, shutters or curtains. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation. FUNCTIONS / CHARACTERISTICS (BINARY OUTPUT) • ON/OFF switching of individual loads or groups of loads • Configurable as normally open or normally closed switch • Logical gates and forced mode for each channel • Manual control by membrane pushbuttons • Status feedback of output channels through LEDs • Switching pushbutton manual/automatic mode • Block function for each channel • Time scheduling: switching delay for on and off, staircase lighting function with warning signal • Integration in scenarios • Operating hours counter configurable via bus (BLIND ACTUATOR) • Full up and down run • Partial run with stop position from 0 to 100% of the length of the run • Position setting (change during the operation of the preset position) • Adjust the inclination of the slats (for blinds) • Integration in scenarios • Automatic control for protection against direct sunlight • Automatic control for protection against weather conditions (rain, wind, frost) CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKFE1TP##.knxprod (## = release).
