Accoppiatore di linea

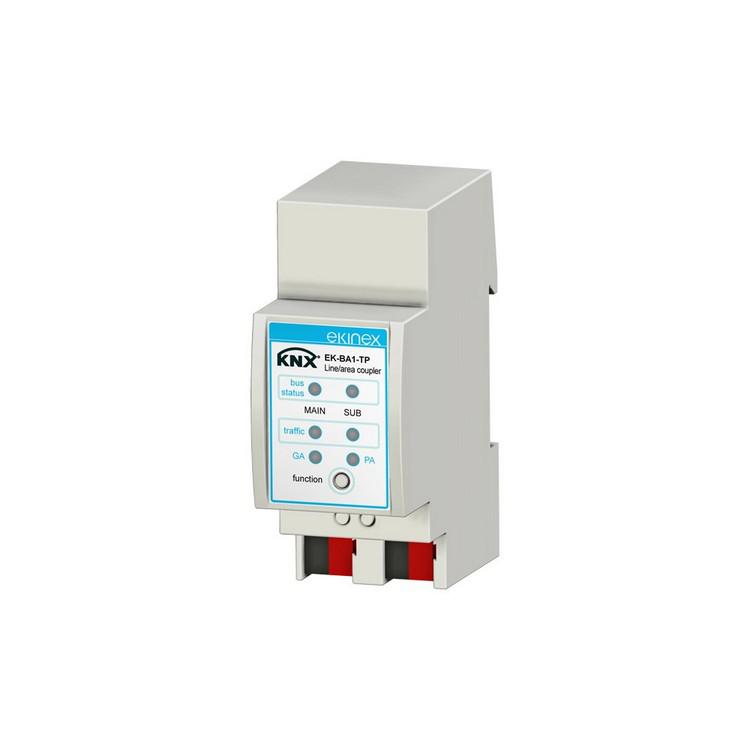

ORDERING CODE EK-BA1-TP DESCRIPTION KNX line or area coupler for connecting a bus line with a secondary one. Mounting in distribution board on EN 60715 rail (2 modular units, each 18 mm). Powered by the bus line. To be used in KNX installations for home and building automation. FUNCTIONS / CHARACTERISTICS • Suppress device configuration on the sub line • Enable or disable filtering of group messages • Suppress device oriented messages • Trace the traffic on the sub line • Reduced number of retransmissions CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS3 or later versions. ETS application program: APEKBA1TP##.vd4 (## = release)
