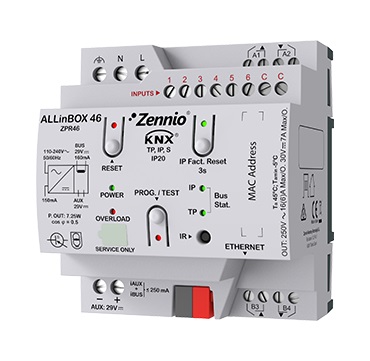

ALLinBOX 46
ZPR46
The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 160 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 6 analog/digital inputs and 4 relay outputs (16 A C-Load) in only 4.5 DIN rail units. Offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2 pipes).
| Category | Value |
|---|---|
| Catalog Item Name | ALLinBOX 46 |
| Application Program Name | ALLinBOX 46 2.3 |
| Order Number | ZPR46 |
| Rail Mounted | Yes |
| Manufacturer Website | Zennio |
