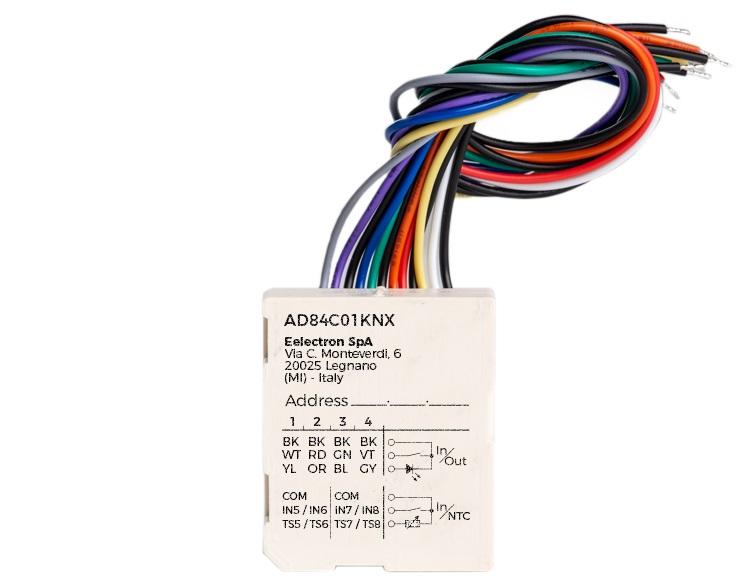

Analog / Digital Module 8 Input / 4 led Output

AD84C01KNX
AD84C01KNX module includes 4 digital inputs to interface dry potential contacts and 4 analog or digital inputs for dry contacts or temperature sensors and 4 led outputs. Digital inputs can interface sensors, traditional buttons, etc; 4 low voltage/current outputs can drive LED for synoptics panels or switches. Inputs 5 ÷ 8, set as analog inputs, can enable up to 2 temperature probes (with On/Off threshold) and 4 thermostats to control heating and cooling equipments, valves, 2 and 4 pipes fan coils; etc.. The device is equipped with appropriate communication interface with the bus type TP1 (twisted pair) KNX European standard, according CEI EN 50090.
Category Value
Catalog Item Name AD84C01KNX Analog / Digital Module 8 Input / 4 led Output
Application Program Name AD84C01KNX
Order Number AD84C01KNX
Rail Mounted No
Manufacturer Website Eelectron
Technical Documentation
