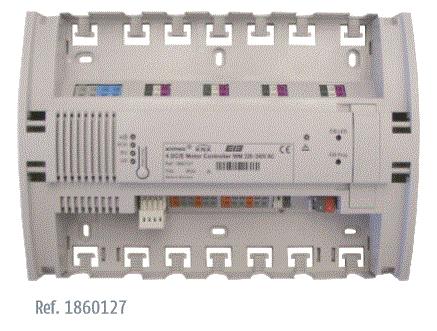

animeo KNX 4DC/E Motor Controller WM 220-240 V AC

Installation advantages
> Easy installation thanks to integrated 24 V DC power supply.
> Easy and quick commissioning in combination with the animeo KNX
Master Control.
> Spring connectors and tension relief with cable ties for safer and quicker
installation.
> Status feedback through LEDs.
> Indication in case of overload.
Functional advantages
> Local push button inputs can be used for up to 8 freely definable binary
inputs.
> Local setting of an intermediate position and user ergonomics.
> Configurable up and down speed in combination with the animeo KNX
Master Control.
> Configurable slats and rotation speed for optimum user ergonomics.
> Enables very precise slats orientation and/or load bars alignment thanks
to Somfy LW25 E83 Motor Encoder.
> Upgradable at any time for local controlling through radio Somfy RTS or
EnOcean technology.
> Up to 5 freely definable radio binary inputs are available when using
pluggable radio cards.
