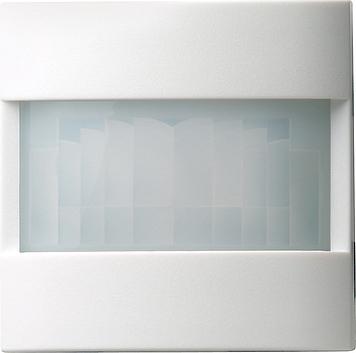

Automatik-Schalter

standard top-unit

Product family: Physical sensors
Product type: Movement indicator

Passive infra-red movement indicator for
internal use.
On activation from a heat movement an
Instabus telegram is transmitted. The
characteristics are configurable.
Configurable as single unit, master
unit, slave unit.
- telegram type at beginning and end of
the activation definable
- brightness value, delay time, hold-on
time
- cyclic transmission
- lock-out function parameter definable
for begin and end of lock-out (own
communication object)

The Instabus automatic switch is
mountable on FM bus-coupler
Order No. 570 00. Time and twilight
value software-definable.
For 1.10 m mounting height: Range 10 m
to front, 6 m to each side.
Capture angle 180ø.
Protection class IP 20.

Fabricate: Gira

Order No. 880 54 F-Line cream white
Order No. 880 55 F-Line pure white
Order No. 880 56 F-Line brown metallic
Order No. 880 57 F-Line anthracite
metallic
Order No. 880 40 S-Color System pure
white
Order No. 880 41 S-Color System brown
Order No. 880 42 S-Color System grey
Order No. 880 43 S-Color System red
Order No. 880 44 S-Color System yellow
Order No. 880 45 S-Color System green
Order No. 880 46 S-Color System blue
Order No. 880 47 S-Color System black
Order No. 880 49 S-Color System dark
grey
Order No. 880 20 High-grade Steel Range
Order No. 880 15 Trias Range cream
white
Order No. 880 61 Trias Range brown/
metallic
Order No. 880 16 Trias Range pure white
Order No. 880 63 Trias Range grey/
metallic
