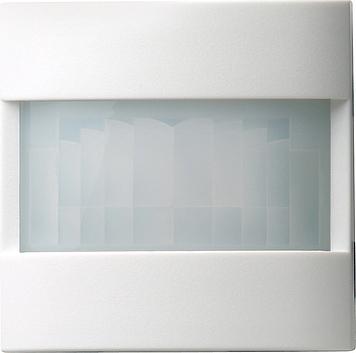

Automatik-Schalter 2,20m UP

standard top-unit for high installation
point

Product family: Physical sensors
Product type: Movement indicator

Passive infra-red movement indicator for
internal use.
On activation from a heat movement an
Instabus telegram is transmitted. The
characteristics are configurable.
Configurable as single unit, master
unit, slave unit.
- telegram type at beginning and end of
the activation definable
- brightness value, delay time, hold-on
time
- cyclic transmission
- lock-out function parameter definable
for begin and end of lock-out
(own communication object)

The Instabus automatic switch is
mountable on FM bus-coupler
Order No. 570 00. Time and twilight
value software-definable.
For 1.10 m mounting height: Range 10 m
to front, 6 m to each side.
For 2.20 m mounting height: Range 12 m
to front, 6 m to each side.
Capture angle 180°.
Protection class: IP 20.

Fabricate: Gira

Order No. 889 54 F-Line cream white
Order No. 889 55 F-Line pure white
Order No. 889 56 F-Line brown metallic
Order No. 889 57 F-Line anthracite
metallic
Order No. 889 40 S-Color System pure
white
Order No. 889 41 S-Color System brown
Order No. 889 42 S-Color System grey
Order No. 889 43 S-Color System red
Order No. 889 44 S-Color System yellow
Order No. 889 45 S-Color System green
Order No. 889 46 S-Color System blue
Order No. 889 47 S-Color System black
Order No. 889 49 S-Color System dark
grey
Order No. 889 20 High-grade Steel Range
Order No. 889 15 Trias Range cream
white
Order No. 889 61 Trias Range brown/
metallic
Order No. 889 16 Trias Range pure white
Order No. 889 63 Trias Range grey/
metallic
