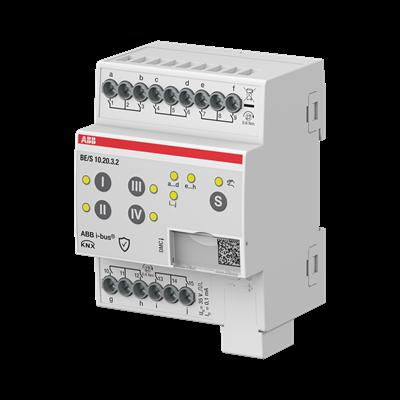

BE/S10.20.3.2 Binary Input, 10-fold, Contact Scanning, MDRC
2CDG 110 277 R0011
Scans floating contacts with internally generated scanning voltage. The state of the input is
displayed via yellow LEDs. The binary inputs enable detection of independent input signals.
The devices feature a manual operation pushbutton for each channel. The devices are powered
via the ABB i-bus® and do not require an additional power supply. The devices support KNX Data Secure.
| Category | Value |
|---|---|
| Catalog Item Name | BE/S10.20.3.2 Binary Input, 10-fold, Contact Scanning, MDRC |
| Application Program Name | Binary Input 10f 20/1.0 |
| Order Number | 2CDG 110 277 R0011 |
| Rail Mounted | Yes |
| Manufacturer Website | ABB AG (Stotz - Kontakt) |
