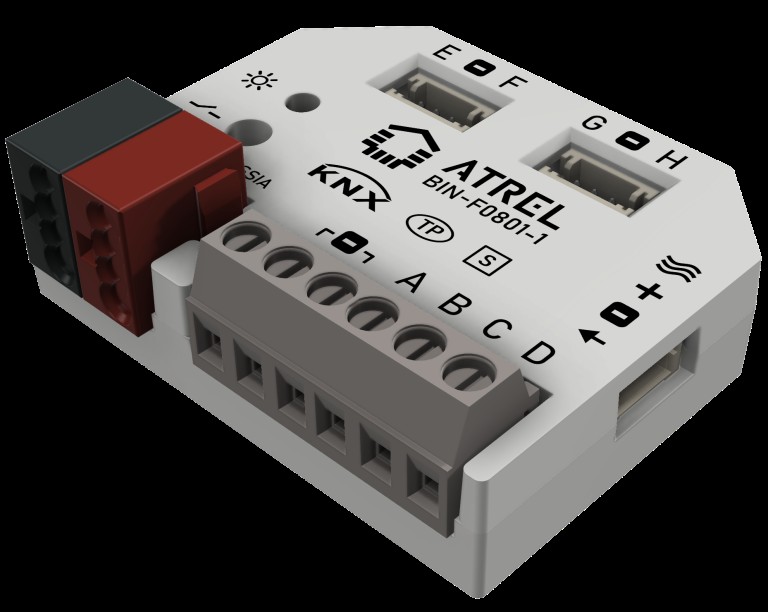

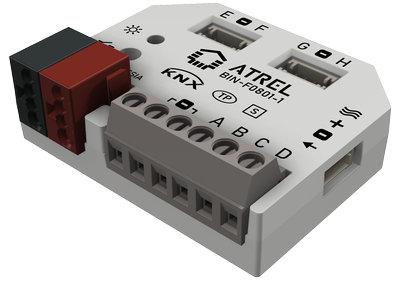

BIN-F0801-1

Module of binary inputs/outputs, temperature/humidity/brightness sensor inputs and a leak sensor in a compact housing for mounting box.
• Up to 8 binary inputs
o Switch mode
o Short/long press
o Pulse counter
o Scene activation
o Curtain control
o Dimmer control
• Up to 8 LED outputs
• Up to 4 NTC temperature sensors
• Up to 4 loops with digital temperature sensors (up to 4 sensors on each loop, with the function of averaging, maximum, minimum values)
• Up to 4 loops with digital humidity sensors art. Atrel OWH-S0110-1
• Up to 4 loops with digital light sensors art. Atrel OWL-S0110-1
• Connection of a passive sound source of the "piezoelectric emitter" type
• Connector for connection of the «Neptune» leak sensor
• 4 thermostats
• 20 logic modules, with the ability to configure any of the 31 functions for each
