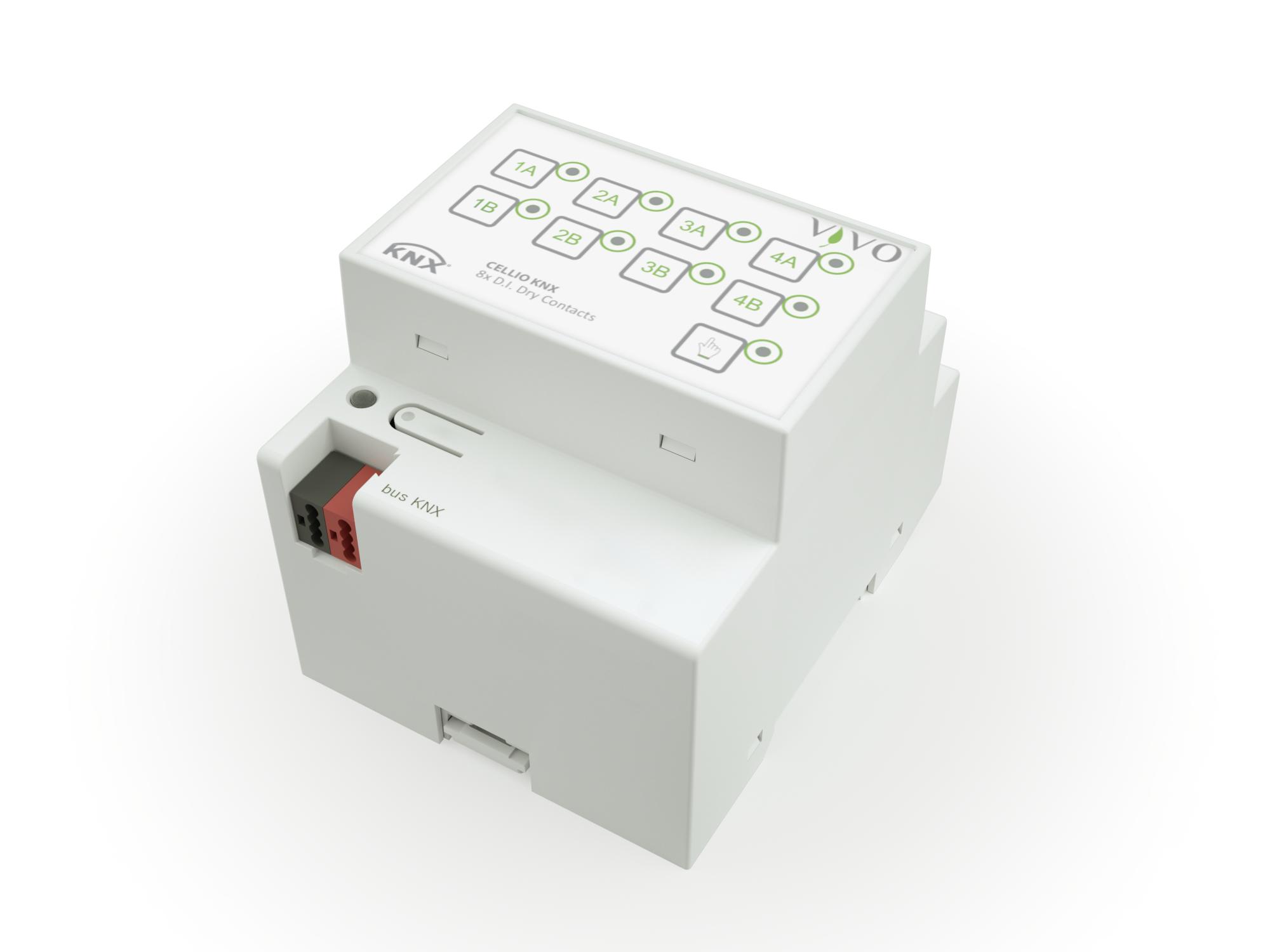

Binary input 8x (dry contacts) VIVO

VIVO Cellio

CELLIO KNX binary input is an S-mode KNX rail mounting modular device for connection to a conventional switches and sensors bus (no native-mode communication on the KNX bus) equipped with potential-free contacts. Thus, by means of the binary input you can switch on and off and control KNX bus functions with standard switches, buttons and sensors or binary signals made available by other devices. The binary input can be used as follows: - 8 independent channels, e.g. for the connection of traditional (not bus) switches or buttons dedicated to loads on/off-switching; - 4 independent channels, e.g. for the connection of double buttons (not bus) to control dimmers or motorised actuators; The device is equipped with an integrated bus communication module and is designed for rail mounting in distribution boards. In order to operate, the device receives an input signal and converts it into a corresponding telegram transmitted onto the bus. The telegram is received and executed by one or more KNX actuators. The device is powered by the KNX bus line with 30 Vdc SELV voltage and does not require auxiliary power supply. Scanning voltage for the input channels is produced inside the device.

Category	Value
Catalog Item Name	Binary input 8 channels
Application Program Name	Binary input 8x (dry contacts)
Order Number	VIVO Cellio
Rail Mounted	Yes
Manufacturer Website	VIVO

Binary input 8x (dry contacts) VIVO
