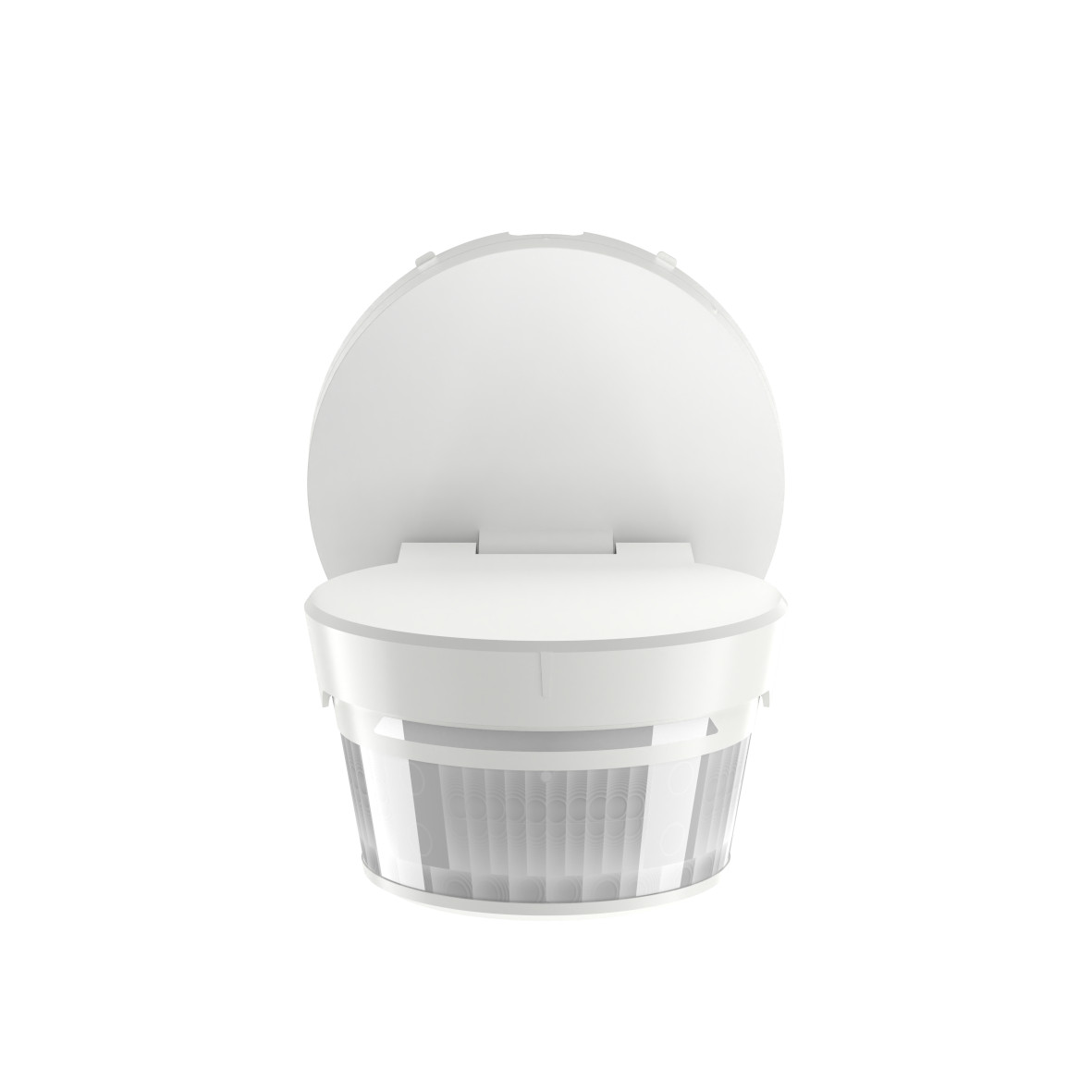

BM/A4.1-13x ABB Watchdog PRO 280° KNX

Electronic motion detector for detecting thermal movements and controlling an external actuator (not included). General: - Basic function settings via potentiometer or Busch-SmartConnect App - Flexible installation with three swivel joints - Optional "square design" with Busch-Wächter® frame 6851/DR-xxx (not included) - 1 twilight/brightness channel with 3 switching thresholds - 1 temperature channel with 3 switching thresholds - Remote control via Bluetooth with smartphone/tablet app - 10 additional KNX functions controllable via the app - Programmable status RGB LED (5 functions) - Integrated tamper protection - Bus connection via the included bus terminal - Programming only with applied bus voltage - Supply and bus voltage: 24 V - Integrated KNX bus coupler - No additional auxiliary voltage required - Native ETS application Detection: - Profile lens for optimal detection - Monitoring density: 106 sectors with 200 - Detection field left/front/right in 3 levels - 4 motion channels - Floor and rear field monitoring - Level compensation: +/- 30° - Horizontal alignment of the detection system +90°/- 60° - Vertical alignment of the detection system +/- 30° Operating modes/functions: - Brightness-independent test mode to determine the detection area - Switch-off delay: adjustable from 10 seconds to 18 hours - Automatic range stabilization - Automatic interference suppression - Automatic glare protection App functions: - Setting parameters via Busch-SmartConnect App: switch-on brightness, switch-off time, continu-ously on, continuously off - Detection of outdoor temperature and ambient brightness on the device Measurements: Twilight threshold: 1 to 1,000 lux Brightness threshold: 1,000 to 80,000 lux Sensor temperature range: -25°C to 55°C Installation: Single-point installation possible Suitable for wall and ceiling mounting Suitable for corner mounting with corner adapter (6851/EA-xxx) (not included) Multi-cable entry on the back and side wall with sealing collar Installation on ISO switch box (68 mm) possible
