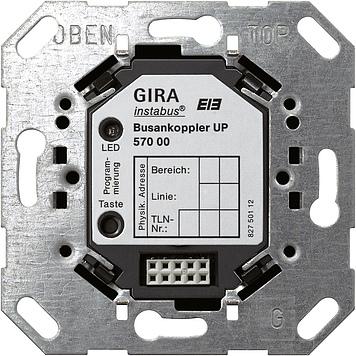

Busankoppler UP

Product family: System equipment units
Product type: Bus-coupler

The FM bus-coupler is the interface
between the Instabus and the
user module i.e. push-button sensor,
info-display, continuous regulator, data
interface, etc. The bus-coupler can
receive, transmit and evaluate
telegrams. It contains the addresses,
the system program and the user-specific
programs. Programming of physical
address enabled through operation of
programming-button.
Condition indicator via red programming
LED.
Only suitable for switch boxes with
screw fastening.

Power consumption: max. 150 mW
Connectors: Instabus via connection and
tapping clamp Order No. 595 00 User
module via plug and socket connector
2 x 5 pole
Protection class: IP 20
Dimensions: fitting depth 32 mm

Fabricate: Gira

Order No.: 570 00
