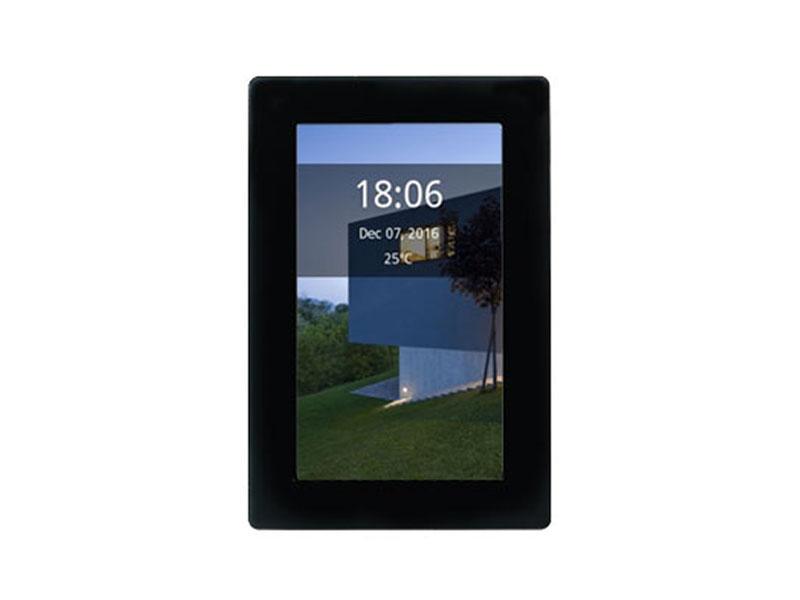

Capacitive Touch Panel IP

TP43I11KNX

The touch panel is equipped with a 4,3 inches display for visualisation and control of KNX installations. The IP version allows for remote control from smartphones and tablets. Available in white or black finish, can be installed in portrait or landscape mode.

Main features:

• Up to 48 control functions, organized in 6 configurable pages
• User editable favorites page
• Configurable background images
• Weekly time schedules (up to 48 channels, 4 programs / channel)
• Alarm monitoring (up to 48 alarms) with event log
• Touch gestures: Up to 5 quick actions without leaving power saving mode
• Internal scene controller
• Two independent thermostats
• Remote control from smartphones and tablets via mobile apps
• Four multi-function inputs, individually configurable as binary or temperature probe inputs
• Built-in temperature sensor
• Real-time clock (RTC) with backup battery
• Integrated KNX bus coupling unit
• Ultra-low power consumption

Category Value
Catalog Item Name TP43I11KNX Capacitive Touch Panel IP
Application Program Name TP43I11KNX Capacitive Touch Panel IP
Order Number TP43I11KNX
Rail Mounted No
Manufacturer Website Eelectron
