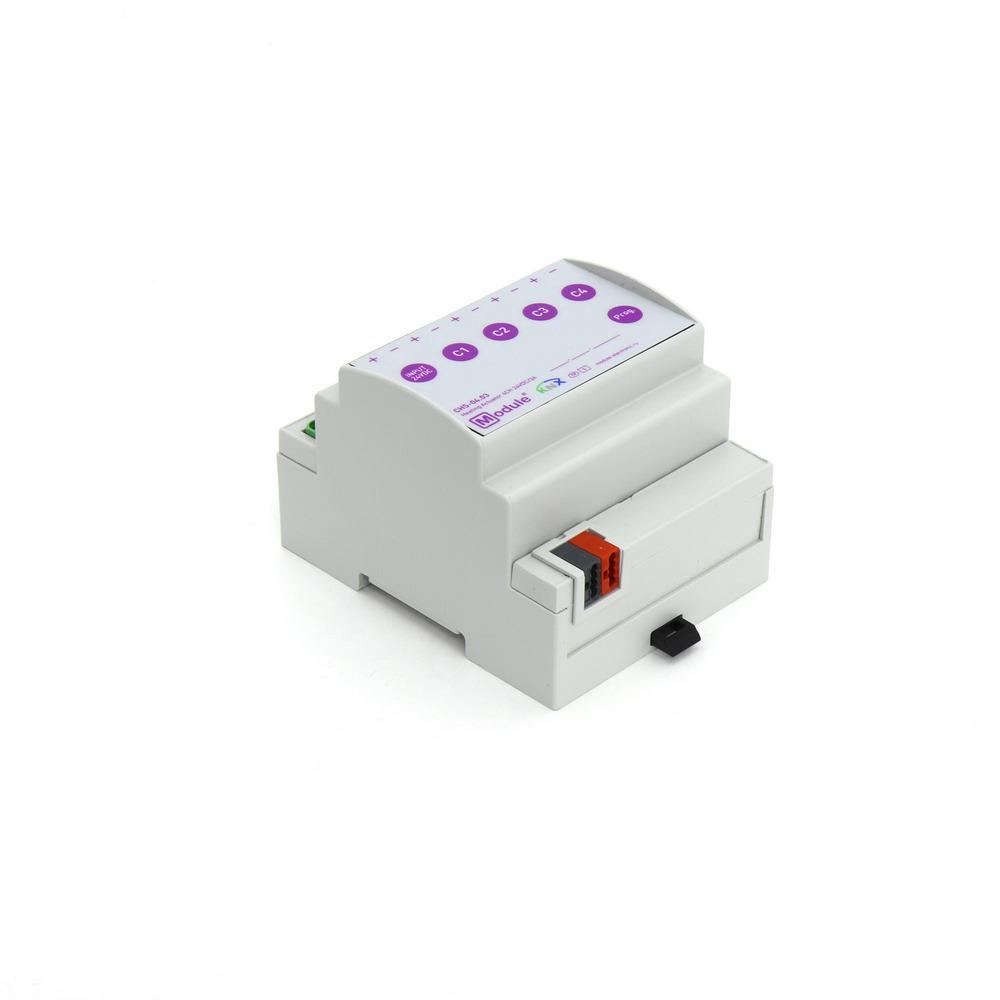

CHS-04.01

The heating actuator is designed to control water heating systems with thermoelectric valves with a supply voltage of 24V DC.

• 4 independent outputs 24V DC

• Ability to connect up to 3 valves per output

• LED indication of output status

• Valve NO / NC operation mode selection

• Function of protection of valves against «sticking»

• Short circuit and overload protection

• Saving settings during a KNX power failure

• Power supply via KNX bus

• Valves powered by external 24V DC power supply

• DIN rail 35 mm mounting
