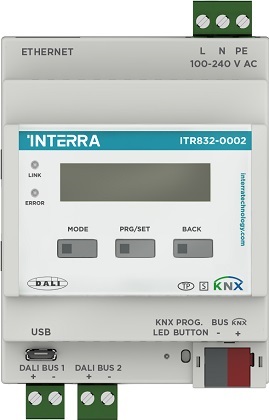

DALI Gateway, 1/2 Channel

ITR832-00XX

The ITR832-00X1 & ITR832-00X2 single and dual-channel KNX-DALI interface devices are used to provide an interface between DALI and KNX installations, enabling communication between the two protocols. DALI devices (ballasts, etc. ECGs) connected to the line are supplied with the internal DALI power supply. With the ITR832-00X1 single-channel device up to 1x64 DALI ballasts can be connected, with the ITR832-00X2 dual-channel device up to 2 x 64 DALI ballasts can be connected. With each DALI channel, 16 groups, 16 scenarios and 64 devices can be controlled. In addition, independent emergency lighting according to EN 62386-202 will be supported with the 2nd version update. Emergency lighting tests (e.g. function and time test) can be triggered via the KNX line. In addition, feedback on the KNX line can be sent. Each DALI device can be controlled individually, in group or broadcast control.

Category	Value
Catalog Item Name	ITR832 - DALI Gateway, 1/2 Channel
Application Program Name	DALI Gateway 1/2 Channel/1.0
Order Number	ITR832-00XX
Rail Mounted	Yes
Manufacturer Website	Interra
