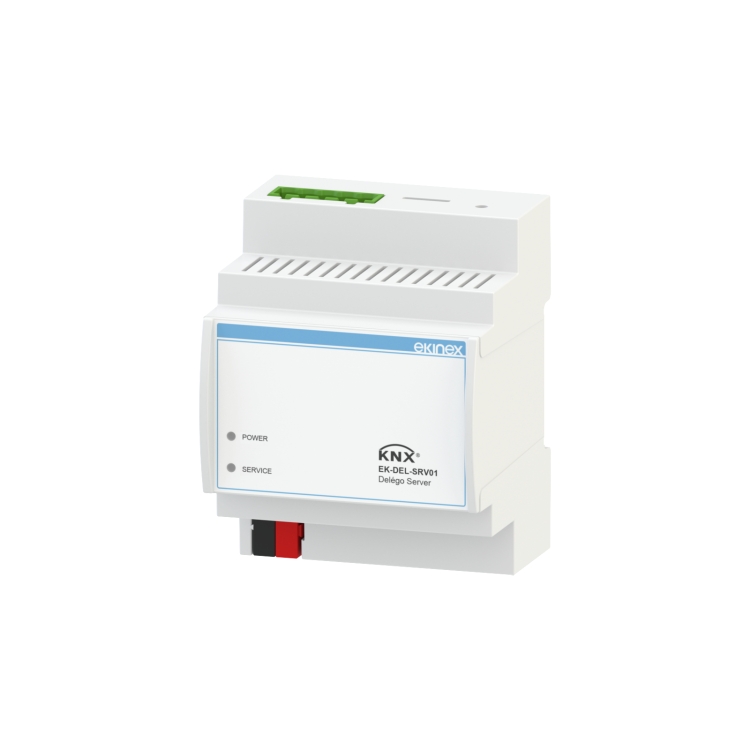

Delego Server

ORDERING CODE EK-DEL-SRV-... DESCRIPTION Delégo server is the web supervisor for systems based on the KNX system. It allows you to manage the functions present in the building through any type of device (PC/MAC, touch-PC, smartphone, tablet), as long as it has a web browser, both locally and remotely via the Internet. The graphics are customizable, suitable for any context and application and optimized for viewing on different fixed and mobile platforms. The configuration of KNX functions is simplified and fast. The device offers the possibility of creating scenarios, time sequences, logics, conditions, mathematical operations, time planning through simple and intuitive graphic tools; it also allows the reporting of events and alarms on video or via e-mail. The configuration can be done online or offline through the PDF tool that can be downloaded for free and does not require programming or HTML skills for customization. Interfacing with other technologies and communication protocols is possible through the installation of additional modules. FUNCTIONS / CHARACTERISTICS - Local connection of Delégo panel wall-mounted touch-screen devices via Ethernet network. - Local connection of mobile devices via WiFi network. - Remote connection of mobile devices via direct connection of the server device to the Internet (with port forwarding) or via connection to the Ekinex cloud. - Secure connection via TLS/SSL encryption. - Integration with Amazon Alexa and Google Assistant voice assistants. - Integrated web server for logical and graphical map visualization of the system. - Integrated web server for system configuration: automatic import of the ETS project, configuration of environments, logical processing functions (combinatorial functions, timing, mathematics, astronomical clock, …). - KNX addresses: 400 HARDWARE FEATURES - Dimensions 90.5 x 62 x 36 mm - 2 DIN modules - Power supply 30 VDC SELV via KNX - Plug-in terminal supplied - Consumption 240 mA at 24V - LAN connections (RJ45) - KNX (red-black terminal) - RS485 (terminal supplied) - USB - Power LED - Service / Reset - Degree of protection IP 20 (according to EN 60529) - Insulation class II (according to EN 60335-1) - Operating temperature +0°C ... +40°C - Storage temperature -10°C ... +70°C CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKDELSRV##.knxprod (## = release).
