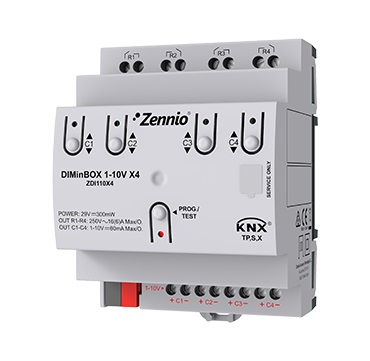

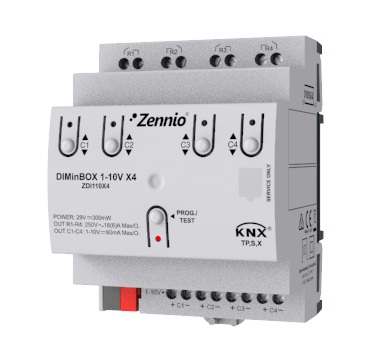

DIMinBOX 1-10V X4

1-10 V dimming actuator for DIN-rail (4 units). It allows until 4 channels for the control of a maximum of 30 electronic ballasts or dimmable lighting drivers per channel. It includes a cut-off relay for each channel (suitable for capacitive loads, maximum 140 μF).
DIMinBOX 1-10V X4 works as sink (voltage is supplied by the ballast/driver).
It allows manual control of its outputs through the push buttons on the cover. It includes 20 independent logical functions.
It is compatible with KNX Secure.
