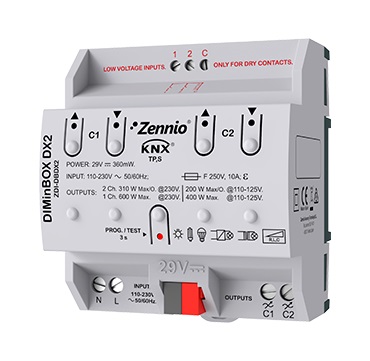

DIMinBOX DX2

Universal DIMMING actuator (RLC, LED, CFL) for DIN rail (4.5u): 2 channels for up to 310W or 1 channel for up to 600W @ 230VAC (2 channels for up to 200W or 1 channel for up to 400W @ 110-125VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 2 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Error detection: short circuit, voltage surge, overheating, anomalous frequency, supply voltage failure, parameterization error.
