Dimming Actuator 2x (10-300W) VIVO

VIVO Mino

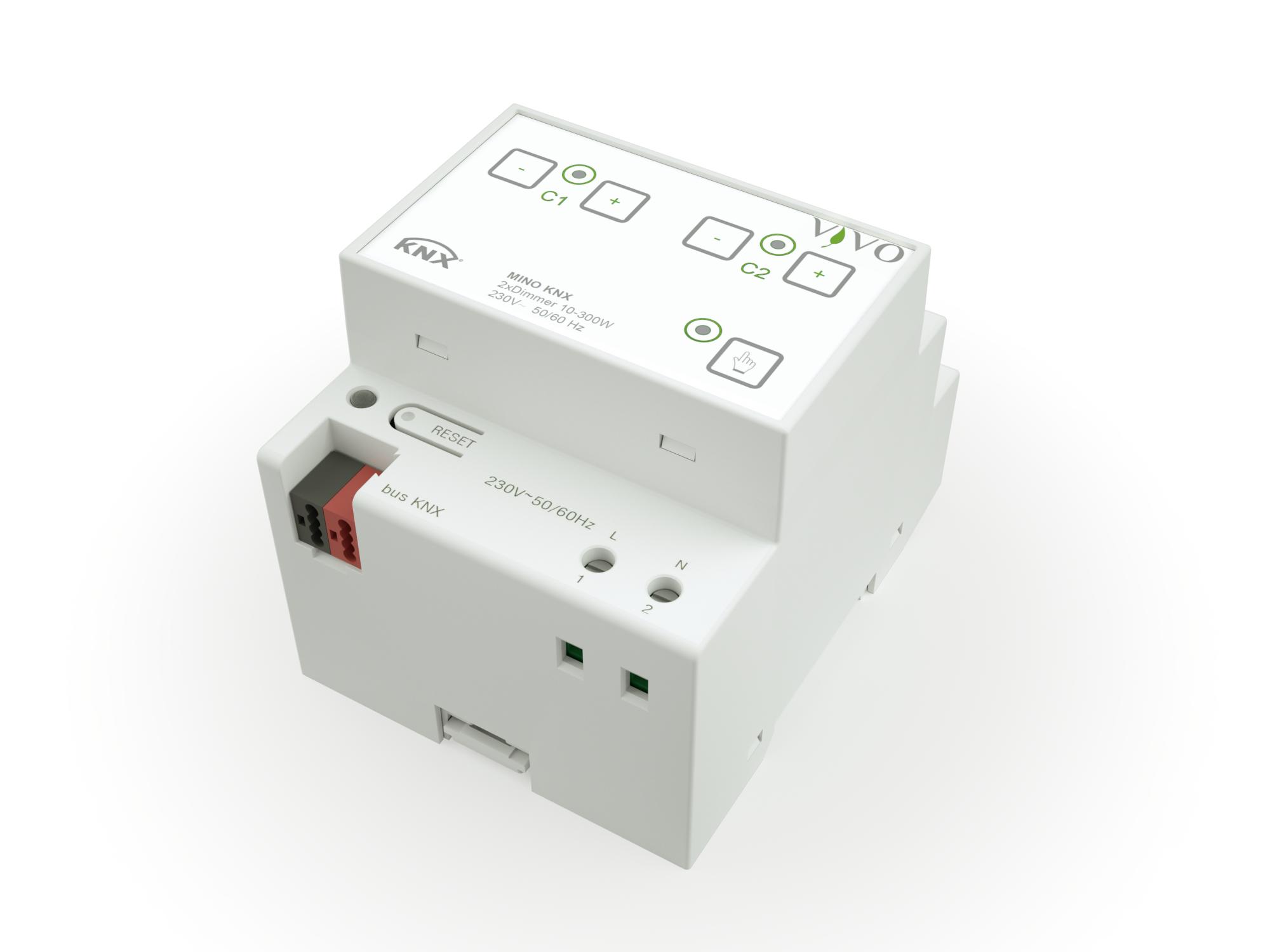

The Vivo MINO KNX dimming actuator is an KNX rail mounting modular device for independent switching and dimming of 2 groups of lighting devices. The device is equipped with an integrated bus communication module and is designed for rail mounting in PDUs. To operate, the device receives a telegram from the bus, sent by a KNX device (such as a button, a sensor or another switching or control device), which controls the opening or closing of the corresponding relay or dimming of the light intensity emitted by the lamp of the connected lighting device. The device also allows manual switching/ dimming of an output channel with the membrane buttons on the front of the device. The device is powered by the KNX bus line with 30 Vdc SELV voltage and requires auxiliary power supply at 230 Vac.
Category Value
Catalog Item Name Dimming Actuator 2x (10-300W)
Application Program Name Dimming Actuator 2x (10-300W)
Order Number VIVO Mino
Rail Mounted Yes
Manufacturer Website VIVO
Technical Documentation
