Din Rail 24 Output Module - F01

BO24F01KNX

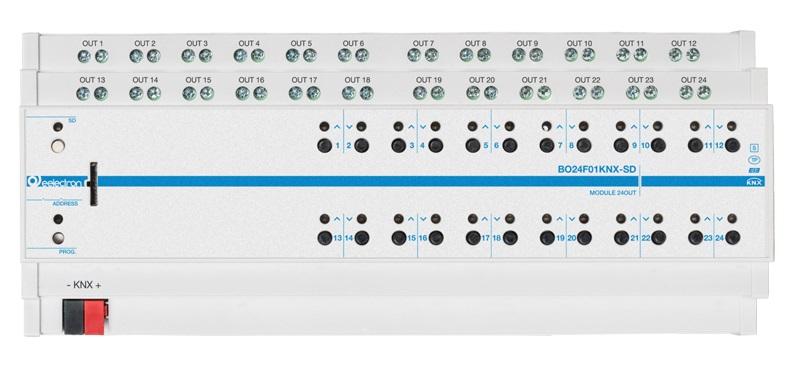

Device BO24F01KNX is a DIN rail EIB / KNX actuators with 24 relay outputs that can be configured as: – 24 outputs for light / load control – 24 channels for valve in PWM (solenoid actuators) – 12 channels for roller shutter / venetian control – 12 channels for 3-point valve control – 6 fan coil actuators 2-pipes / 4 fan coil actuators 4-pipes It is also possible to combine 3,4 or 5 relays with logic interlock for 4-pipe / 3-speed fan coil control or combine groups of relays (up to 6) for special function using logic interlock . Version BO24F01KNX-SD includes a microSD card reader with which you can save the programming of the device to be able to restore it on an identical device in order to avoid programming in field or to allow a fast restore in case of failure.

Category	Value
Catalog Item Name	BO24F01KNX DIN Rail 24 Out Module - F01
Application Program Name	BO24F01KNX BO 24 Universal Module
Order Number	BO24F01KNX
Rail Mounted	Yes
Manufacturer Website	Eelectron
