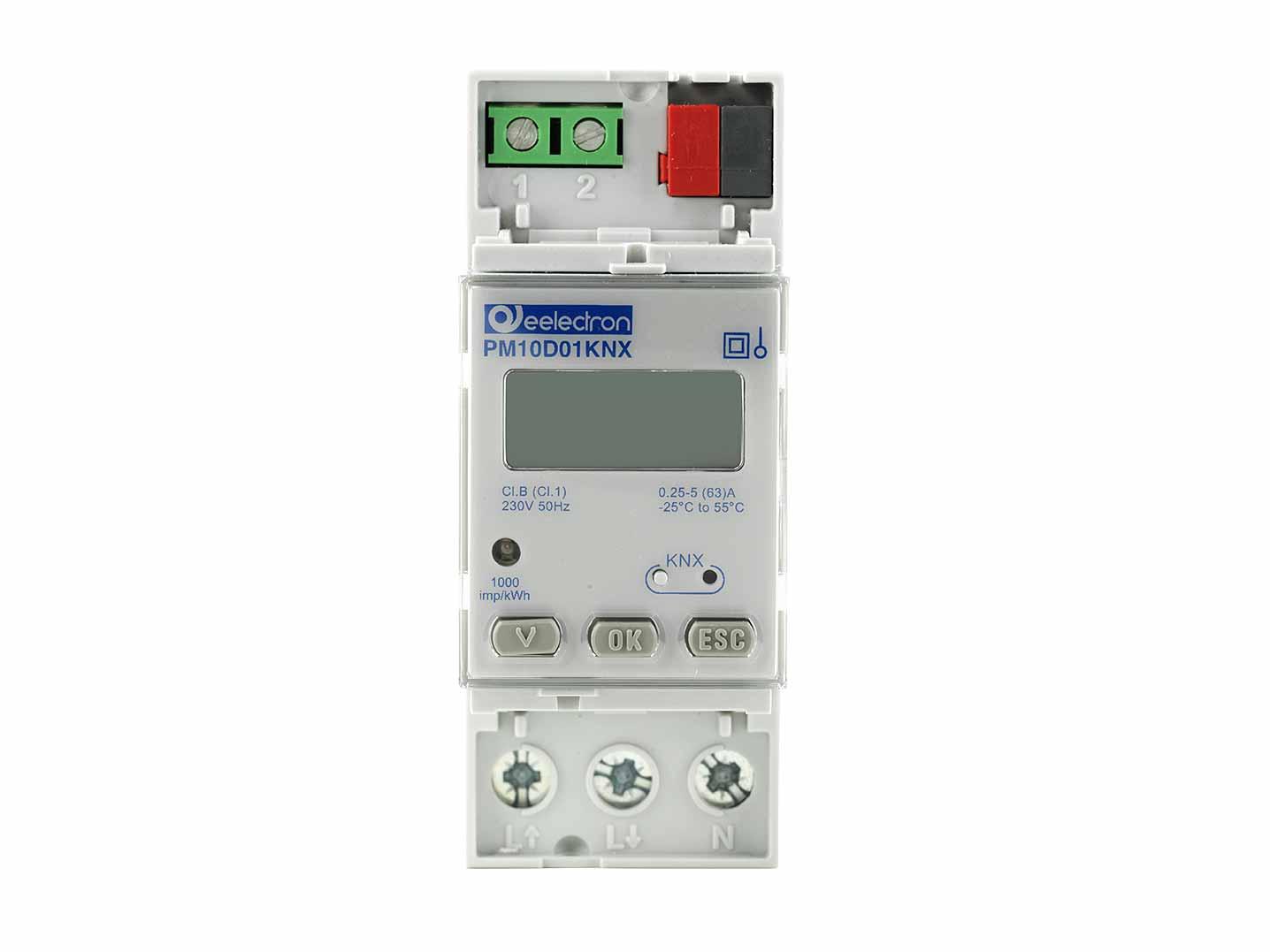

Din Rail Single Phase Energy Meter

PM10D01KNX
This Energy-meter provides the essential measurement capabilities required to monitor a single phase electrical installation. • 0.25-5 (63) A, Class B, 230 VAC 50 Hz, -25 °C … +55 °C, 4 Quadrants, 2 Tariffs. • Active Energy Class B (according to EN-50470) and Reactive Energy Class 2 (according to IEC 62053-23) • Direct connected (up to 63 A) • LCD display and 3 push-button keys (to read Energies, V, I, PF, F, P, Q and to configure some parameters) • 1 push botton and 1 LED dedicated to KNX. • Display with 8 digits. • Self supplied (by the input voltage itself). Device is intended to be installed on DIN rail.
Category Value
Catalog Item Name PM10D01KNX Din Rail Single Phase Energy Meter
Application Program Name PM10D01KNX
Order Number PM10D01KNX
Rail Mounted Yes
Manufacturer Website Eelectron
