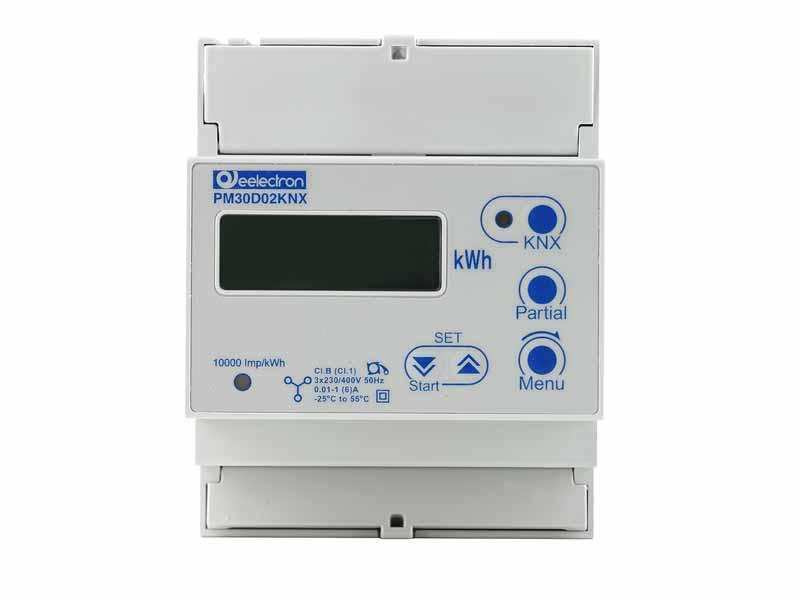

Din Rail Three Phase Energy Meter TA

PM30D02KNX

This Energy-meter provides the essential measurement capabilities required to monitor a three phase electrical installation.

• Three-phases digital energy meter with connection by CT …/1 A up to 2000/1 A or by CT …/5 A up to 10.000/5 A 0.01-1(6) A – 2 Tarif
• LCD display and 3 push-button keys (to read Energies, V, I, PF, F, P, Q and to configure some parameters)
• 1 Push button and 1 LED dedicated to KNX.
• Display with 8 digits.
• Self supplied (by the input voltage itself).
•1 S0 pulse output proportional to Active Imported KWh

Device is intended to be installed on DIN rail.

Category Value
Catalog Item Name PM30D02KNX Din Rail Three Phase Energy Meter TA
Application Program Name Three Phase models profile
Order Number PM30D02KNX
Rail Mounted No
Manufacturer Website Eelectron
Technical Documentation
