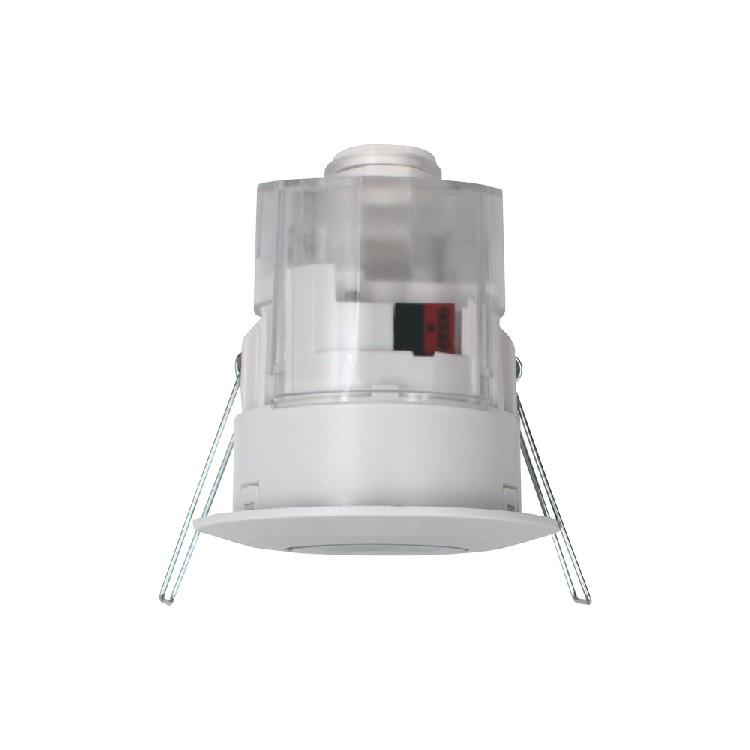

EK-DF2-TP

ORDERING CODE EK-DF2-TP DESCRIPTION KNX presence sensors for ceiling/counter-ceiling mounting. 2 lighting channels (with constant brightness control), 2 HVAC channels and 1 alarm channel. Orientation light (standby). Control parameters can be set via ETS or dedicated IR remote control. Input for On/Off and dimming by KNX button. Power supply via bus. Use in home and building automation systems to KNX standard. Detection range 4/9 m. FUNCTIONS / CHARACTERISTICS • 2 channels for lighting, 2 channels for HVAC, 1 channel for alarm • Semi-automatic or fully automatic operation • 360° detection range • Measuring range from 10 to 2000 Lux • Settable sensitivity • Brightness sensor with bus output • Prismatic lens: semi-flat (max projection 7mm) • Installation height approx. 2-5 m • Built-in depth: 71 mm • Programming button on the back • Optional IR remote control CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the device's application manual. ETS4 or later is required for configuration and commissioning. Application program for ETS: APEKDF2TP##.knxprod or APEKDG2TP##.knxprod (## = version).
