EK-DH4-TP

ORDERING CODE
EK-DH4-TP

DESCRIPTION

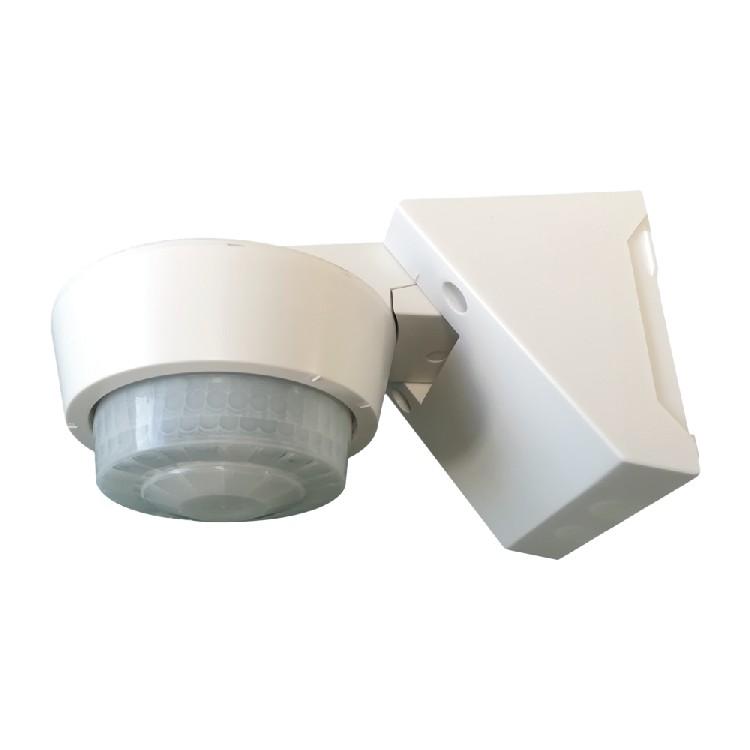

KNX presence sensors for wall/ceiling mounting. 2 lighting channels (with constant brightness control), 2 HVAC channels and 1 alarm channel. Orientation light (standby). Control parameters can be set via ETS or dedicated IR remote control. Input for On/Off and dimming by KNX button. Power supply via bus. Use in home and building automation systems to KNX standard.

FUNCTIONS / CHARACTERISTICS
• 2 channels for lighting, 2 channels for HVAC, 1 channel for alarm
• Semi-automatic or fully automatic operation
• 360° detection range
• Measuring range from 10 to 2000 Lux
• Settable sensitivity
• Brightness sensor with bus output
• Installation height approx. 2-3 m

CONFIGURATION AND COMMISSIONING
A detailed description of the parameters can be found in the device's application manual. ETS4 or later is required for configuration and commissioning. Application program for ETS: APEKDF2TP##.knxprod or APEKDG2TP##.knxprod (## = version).
