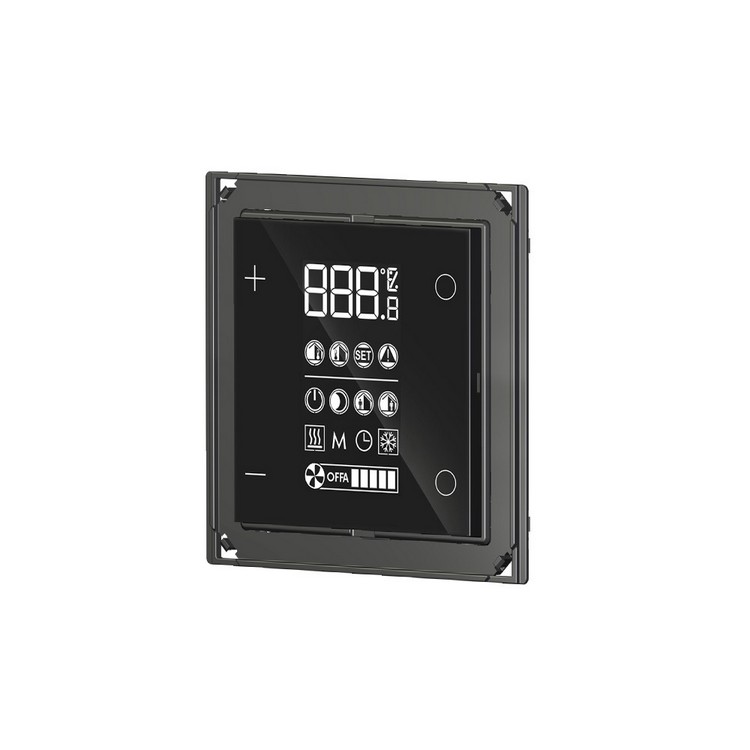

EK-E73-TP-EASY - Room temperature controller 71 Serie

DESCRIPTION KNX room temperature controller. To be used in KNX installations for home and building automation. Measuring of temperature through integrated sensor. Simplified user interface with backlighted LCD and four capacitive pushbuttons. Mounting on round or square wall box. Powered by the bus line. Terminal block for bus and mounting screws included in the delivery. Versions to be completed with a square frame of the series form or flank: EK-E73-TP-EASY 'NF (No Frame) versions: - EK-E73-TP-EASY-NF (black side profile) - EK-E73-TP-EASY-NFW (white side profile) SINGLE INSTALLATION The device has to be completed with a square plate EK-PQS-... (to be ordered separately). DOUBLE INSTALLATION The device may be also installed in combination with: - a pushbutton of the 71 series and completed with a 2-fold plate EK-P2S-... EK-PDS-...EK-S2S-... and a 2-fold form or 2-fold flank frame; - a flush-mounted insert with standard 55x55 mm modularity and completed with a 2-fold plate EK-P2G-... and a 2-fold form or 2-fold flank frame. The metal support for wall mounting box, the plastic adapter, the plate and the frame have to be ordered separately. FUNCTIONS / FEATURES - Measurement of temperature with integrated sensor with the possibility of sending the value on the bus - 2 points (ON / OFF) or proportional (PWM or continuous) room temperature regulation - Heating and cooling modes with the possibility of switching locally or via bus - Operating modes: comfort, standby, economy and building protection with separate setpoints for heating and cooling - Easy navigation mode, without confirming actions - Setpoint modification steps (General tab -> Temperature setpoint steps) - OFF mode with either a short press or a long press - Slave mode for split units (external controller) when configured for heating and cooling and with 3-speed ventilation - Easy display mode when the thermostat is configured with an external controller - Ability to invert command and status for the thermostat activation group object - Ability to automatically invert fan status - Automatic switching of the operating mode depending on presence or opening windows - Weighted average of the two temperature values - Display of temperature (measured, setpoint, external in °C or °F), alarms and errors (with alphanumeric coding) - Reporting the opening of windows CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKE73TPEASY##.knxprod (## = release). Available languages: English, French, German, Italian.
