EK-FG1-TP

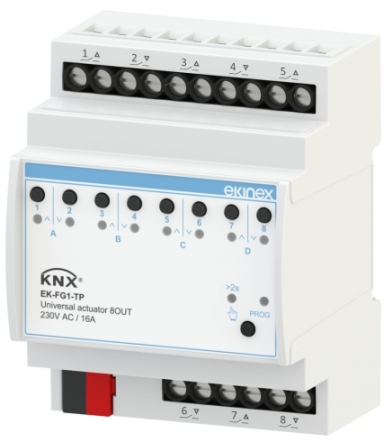

ORDERING CODE EK-FG1-TP DESCRIPTION ÆVO built to last - Unbeatable reliability and resistance for a carefree tomorrow. The EK-FG1-TP universal actuator from the ÆVO series allows you to control up to 8 groups of electrical users, such as lights and valves, or to control up to 4 motorized drives, such as Venetian blinds and 3-way valves, independently and in any combination; for this purpose, the device has outputs equipped with potential-free relay contacts. The bistable relays of the device ensure that the set command status is maintained even in the event of a bus voltage failure. The device is equipped with buttons for manual control and LEDs for status indication; a button allows you to switch between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is required. FUNCTIONS / CHARACTERISTICS - Switching lights on and off - Control of motorized drives - Manual control via buttons on the front - Status indication of outputs via LEDs - Configuration as a normally open or normally closed switch - Outputs and channels can be set via ETS as independent or with copy function from another output or channel - Control of ON/OFF valves and three-way valves - Up to 8 logic functions (AND, OR, XOR, etc.), object comparison and arithmetic - Block and forcing function for each channel - Timing: delay in switching on and off, stair light function with warning signal - Integration into scenarios - Energy and operating hours counter configurable via bus - Meteo alarms TECHNICAL DATA Supply - Power supply 21-30 Vdc via KNX bus - Bus current draw at start-up: 54 mA @30 Vdc, 49 mA @21 Vdc - Bus current draw in stand-by: 10 mA @30 Vdc, 13 mA @21 Vdc - Bus current draw during relay movement: 32 mA @21-30 Vdc Outputs - Number: 8 independent outputs, 4 combined in channels (depending on use) - Bistable relays with tungsten pre-contact - Rated current (In) per output: AC 16(6) A @250 Vac (4000 VA); DC 7 A @30 Vdc (210 W) - Maximum load per output: resistive 4000 W, inductive 1500 VA, LED lamps 90-230 Vac max. 400 W - Maximum inrush current: 800 A / 200 μs, 165 A / 20 ms - Maximum capacitive load: 200 μF - Possibility of connecting different phases in adjacent outputs - Total maximum current in device: 96 A - Short-circuit protection: not present - Overload protection: not present - Connection method: screw terminal block (0.5 Nm torque max.) - Cable cross-section: 4 mm² / 2 x 2,5 mm² (0,5 mm² min.) - Outputs per common: 1 Environmental conditions - Operating temperature: - 5 ... + 45°C - Storage temperature: - 25 ... + 55°C - Transport temperature: - 25 ... + 70°C - Relative humidity: 95% not condensing) Other characteristics - Housing in plastic material - Mounting on 35 mm rail (according to EN 60715) - Protection degree IP20 (installed device) - Overvoltage class III (according to EN 60664-1) - Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2) - Pollution degree 2 (according to IEC 60664-1) - Mechanical lifetime (min. cycles): 3 000 000 - Electrical lifetime (min. cycles): 100000 @8A / 25000 @16 A (Vac) - Dimensions (LxHxP): 71 x 90 x 63 mm - Weight: 277 g CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the device's application manual. ETS5 or later versions are required for configuration and commissioning. Application program for ETS: APEKFG1TP##.knxprod (## = version).
