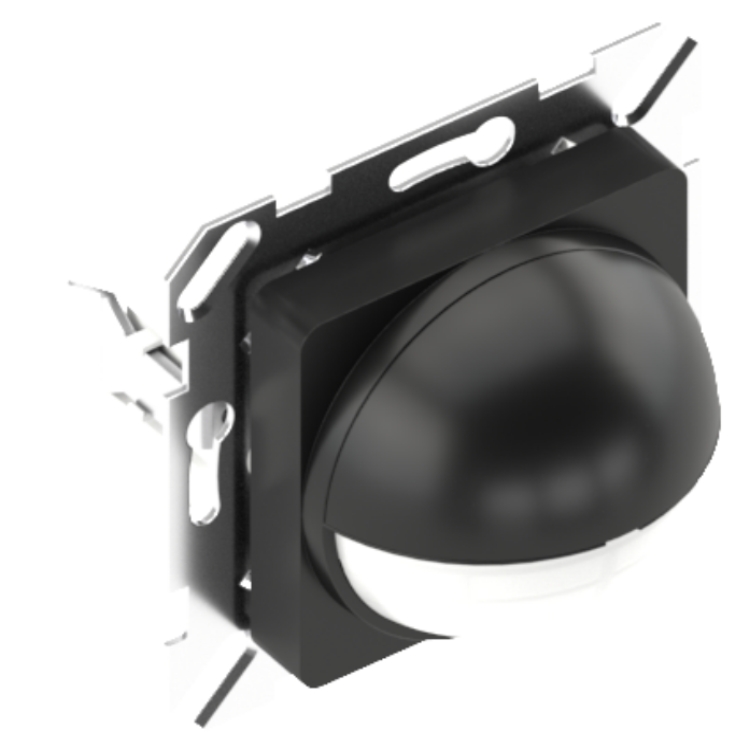

EK-SN2-TP wall presence/movement detector

DESCRIPTION The motion sensor Ekinex® EK-SN2-TP is used to detect the passage and standing of persons in a semicircular detection area. It is ideally suited for use in corridors, passage areas, toilets, stairwells, lift landings and generally environments with occasional occupancy. The device has dedicated channels for controlling lighting, HVAC equipment and alarms. Movement/presence detection is carried out by PIR (passive infrared) sensors; a sensor also allows the measurement of ambient brightness. The operating mode is semi-automatic or fully automatic. The device has an integrated KNX bus communication module and is designed for mounting in a flush-mounted wall box; it is powered via the KNX bus and does not require an auxiliary power supply. does not require an auxiliary power supply. FUNCTIONS / FEATURES - Semi-automatic or fully automatic operation - Two independent light control channels - Two independent HVAC control channels - One alarm channel - An additional device can be used as a slave for any of the channels - 200° detection range - Adjustable sensitivity (4 levels) THE DEVICE IS EQUIPPED WITH - (on the front side) a programming button - (visible through the lens), a blue programming LED, a red red signal LED, a PIR sensor, a brightness sensor and an IR receiver ACCESSORIES The following accessories are available to be ordered separately: - square frame Form or Flank version - square plate with 50 x 50 mm window - a plastic adapter CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKSN2TP##.knxprod (## = release).
