Hybrid Switch Actuator REG-K/8x250/10 manual mode

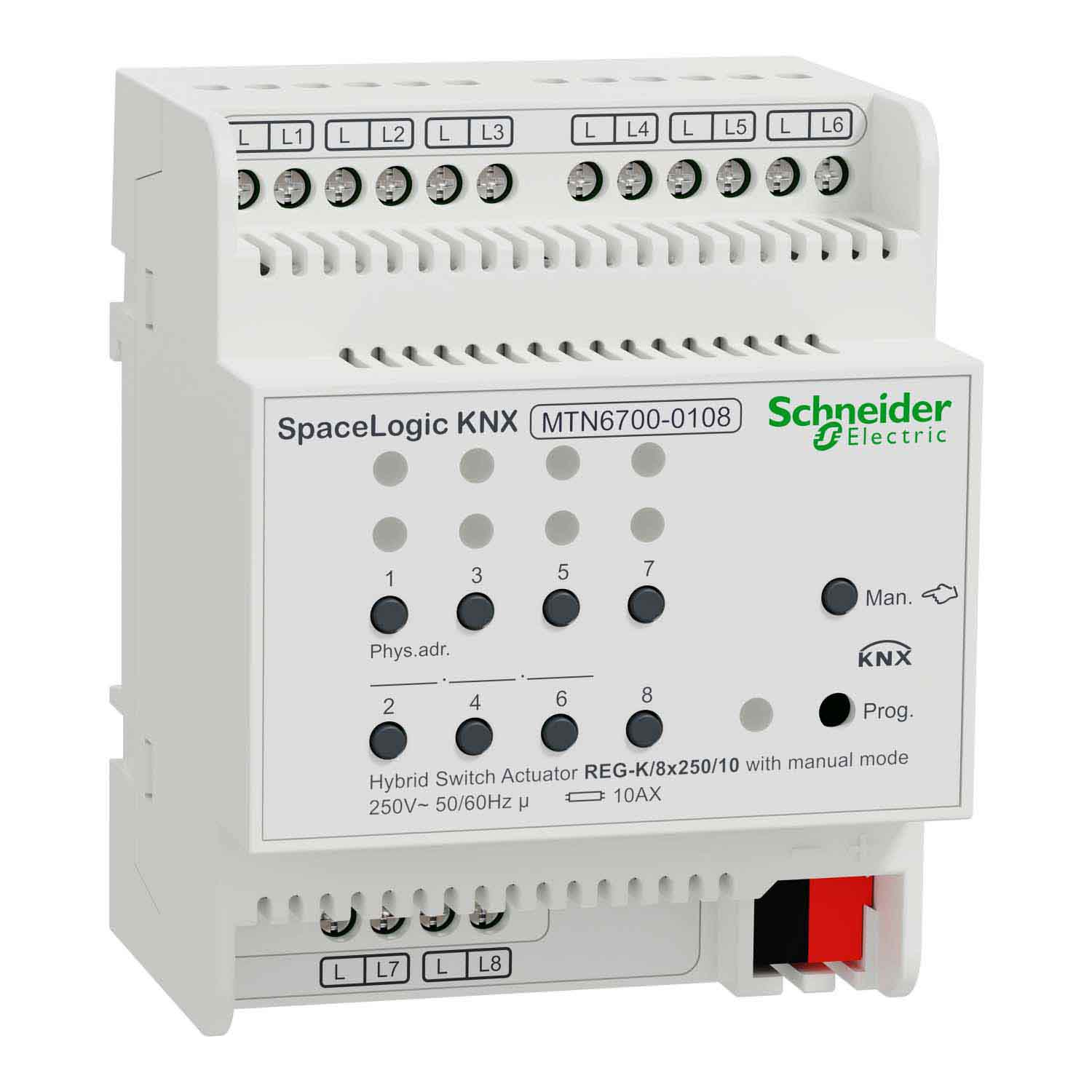

This Schneider Electric SpaceLogic KNX hybrid Switch actuator operates by KNX bus type with manual mode for switching up to 8 loads via make contacts. A green LED indicates readiness for operation after the application has been loaded. The function of the blind or switch, and heating channels are freely configurable. The switch modular does not require an auxiliary power supply and is ready for immediate use after applying the bus voltage. The assignment of the physical addresses as well as the parameterization is carried out with ETS. The connection to the KNX is implemented using the bus connection terminal on the front. This switch actuator is used for residential apartments and small office buildings. Its Ue-rated operational voltage is 250VAC at 50/60Hz. Its rated current is 10AX. The load handling of 250V LED lamp is 250W, incandescent lamps is 2500W and fluorescent lamps with electronic ballast is 2500W. This device enables DRA (DIN-rail adapter) mounting. The dimension of the product is (W) 72mm x (H) 64mm x (D) 90mm and the product weight is 206g. The color of this device is white. It is made of plastic material. The ambient air temperature for operation is from 5°C up to +45°C. It reaches IP20 degree of protection. This device is compliant with IEC60947-4-1, IEC60669-2-1 standards and with CCC certification.
