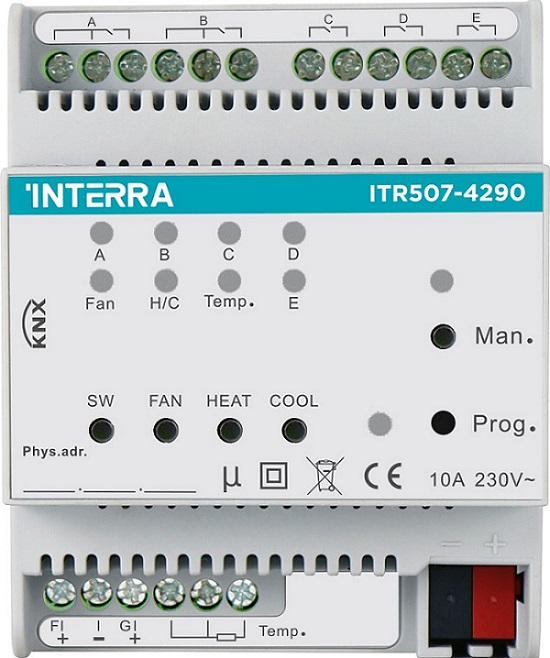

Interra KNX Fan Coil Actuator (0/10V)

ITR507-4290
The KNX Fan Coil Actuator product is designed to provide comprehensive control for HVAC systems. Key features include: Fan Speed Control: Up to three fan speed levels can be managed and status responses are available. The system supports automatic operation and limitation functions, as well as forced operation. In case of bus failure and recovery, the system can configure up to 15 scenes. HVAC Control: The product supports both 2-pipe and 4-pipe systems. Control options include 2-state ON/OFF valves or continuous PWM valves. Valves can be controlled locally or via the bus, with status feedback for valve positions. HVAC modes include standby, comfort, night, and protect modes, and these can be controlled locally with mode status feedback. Temperature Measurement: Local temperature can be measured via an external PT1000 sensor input. Scene Function: The system supports scene configurations for different operating conditions. Interface Output: Relays can be used as switch outputs if not utilized for fan speed or valve control. Special function switch outputs include time, logic, scene, force, and operation hours counter. Additionally, there are 2 channels of 0-10V outputs available for fan or valve control.
Category Value
Catalog Item Name ITR507-4290 - KNX Fan Coil Actuator (0/10V)
Application Program Name Interra KNX Fan Coil Actuator (0/10V)
Order Number ITR507-4290
Rail Mounted Yes
Manufacturer Website Interra
