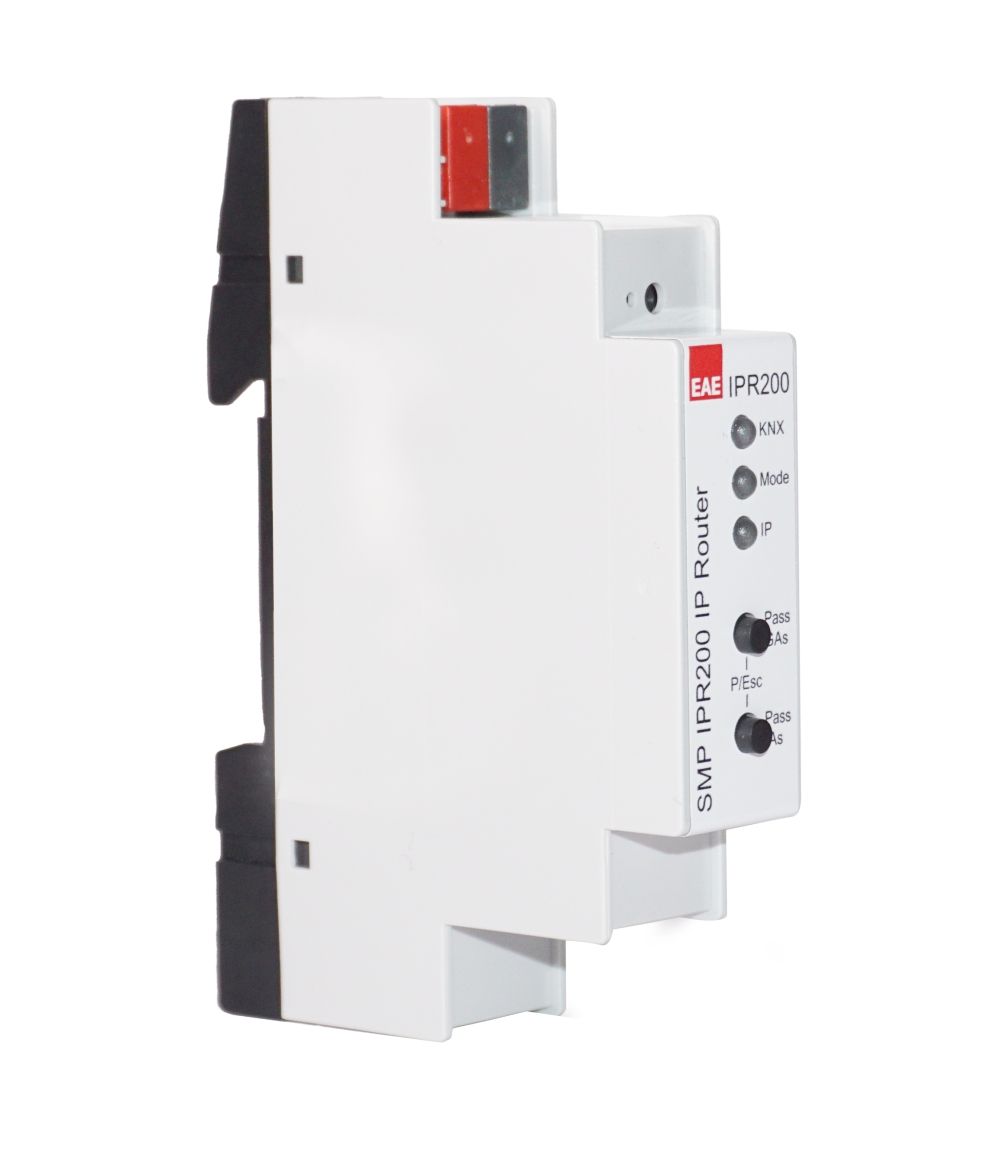

IPR200 IP Router

#IPR200 IP Router #KNXnet/IP Connections EAE KNX IP router is used as a line or backbone coupler to ensure communication between KNXnet/IP and TP KNX bus line. Electrical insulation is also achieved between the linked lines. ##General Specifications - The compact KNX IP Router 200 allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone. In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming. - The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively. This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part. - The KNX IP Router 200 has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams. Power is supplied via the KNX bus. The documents are available at the following link: `https://www.eaetechnology.com/en/products/knx-products/system-devices/ipr200-ip-router`
