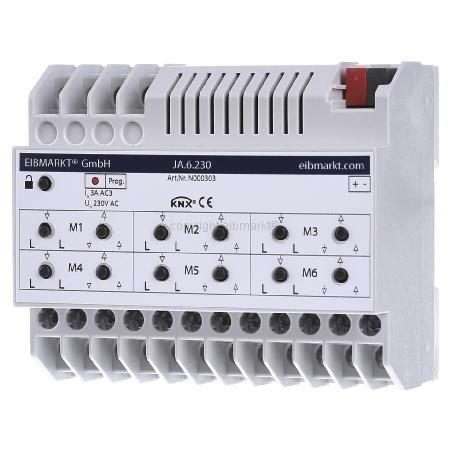

KNX shutter/blind actuator 6fold 230V, DRA JA.6.230. The KNX blind-/shutter actuator JA.6.230 is a MDRC device to be mounted on a 35mm DIN-rail and to be installed into elctrical distributors. The actuator switches up to 6 electrical devices (motors 230V AC). Programmable from ETS 4 and higher. EIBMARKT® GmbH Holding (www.eibmarkt.de) presents a new 230V EIB/KNX shutter/blind actuator 6-fold (N000303) with manual operation (mounting method DRA, modular spacings 6). Special advantages are: Use of bistabile relays, only with this can a preferred state be set in case of bus failure, no additional power supply (KNX only), little space required and a very comprehensive ETS application. The actuator offers extensive additional parameters, such as Scenes (1 bit/1 byte) for runtime and slat, lock, automatic, security and alarm functions, weather alarms (6 pc), driving limit functions, position feedback (1 bit/1 byte) and many more. The device also has 6 independent measurement functions. Sensor readings (KNX) can be processed, tested and passed in various formats (1bit up to 2byte exp.). ETS application details: Measured value processing : Readings ( 1 bit .. 2Byte EXP) come from KNX sensors via bus, regardless of actuator outputs usable, correction / manipulation, addition + multiplication factor, range monitoring, threshold for alarm function adjustable output can be used as alarm source for actuator - device ´´ life message´´ cyclic object value 1/0 - button function disable / enable via 1bit object - activated homing via 1bit object - blind / shutter operation behavior on bus failure / recovery - Adaptation to drive, start / exit delay - Move to position directly / on end positions, 10 pre-definable positions - scenes 1-byte object, device is assigned to 6 different scenes - Automatic mode: about 1 bit object activated / deactivated, 4 automatic functions, eg Rain, wind, frost, sun or other programmable priorities among themselves, response to activation / deactivation of automatic, 1-byte object for position in automatic mode runtime / slats - lock, 1 bit object behavior in lock programmable - Restriction driving range about 1 bit object activated / deactivated, limits above / below 1 byte objects during the run changeable - Security: 6 alarm sources selected from data processing, priorities among themselves parameterized, response to activation / deactivation of alarms, acknowledgment alarm about 1bit object - restraint: 1 bit or 2 bits operation, response to activation / deactivation of priority control - status: Status output 2 byte object + group status, status of automatic 1-byte object + group status, state security 1-byte object + group status, status, current direction 1bit object status position valid 1bit object status end position up / down 2x 1 bit object status curtain 1-byte object slat status 1 byte object status intermediate position 1, 1 bit object, sending on reaching the position, status intermediate position 2, 1 bit object, sending on reaching the position Technical data: The switch position displays indicate the current driving direction of the drives. Thus, the connected drives can also be activated manually using the assigned key. The blind/shutter actuator JA.6.230 is a device to be mounted on a 35mm DIN-rail and to be installed into electrical distributors. In connection with the product database and ETS-software the actuator serves to control up to 6 electrical devices (motors) with different functions each. Several ETS-software adjustments permit application as blind and shutter actuator. Power supply for the device is realized by EIB only, no other power supply is required. Connection to the bus (EIB, KNX TP1) is made by means of the supplied bus terminal. Connection of the devices is guaranteed by integrated screw terminals. Thanks to their potential-free contacts, the outputs are able to switch loads with a current of up to 3A. Number of outputs: 4 relays ch. NC/NO contact with manual operating mode Switching delays: 1 output: appr. 1 sec., 6 outpus appr. 3 sec. Load conn. w. screw terminals: min. Ø 0,1mm/ max. 2x 2,5mm² Rated voltage: 230V AC Max. current 230V AC: 3A AC3 EMC and low voltage directive: CE, EIB, KNX Electrical safety, protection: IP20, EN60 529 MDRC casing for DIN rail assembly: 6 width units, DIN rail 35mm, DIN EN50 022 Measurements: 105 x 90 x 60 (W x H x D) Weight: 0,4 kg Temperature at normal operation: -5°C...45°C Temperature at storage: -25°C...55°C Temperature at transportation: -25°C...70°C Product database (Application ETS): Shutter/Blind/Universal
