KNX dimmer 1 CH 12-48 Vdc Monocrome

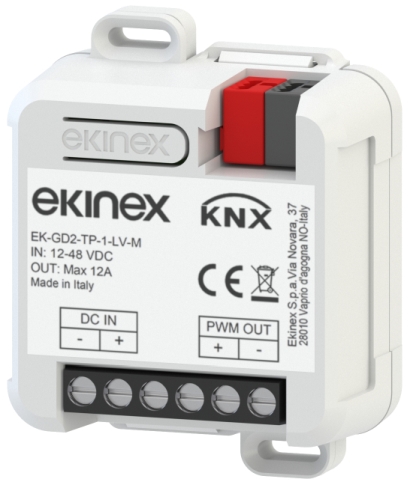

ORDERING CODE EK-GD2-TP-1-LV-M DESCRIPTION The ekinex EK-GD2-TP-1-LV-M KNX 12/24/48 Vdc monochromatic dimmer allows the PWM brightness control of LED loads. Designed specifically for dimmable LED strips and loads, it is compatible with the KNX system and suitable for monochromatic strips. Installation is simple via DIN rail mounting, ensuring perfect integration into electrical panels. The device has an integrated bus communication module with SELV 30 Vdc voltage, KNX certified. FUNCTIONS / CHARACTERISTICS • ON/OFF control and regulation of the light intensity of single or grouped lighting fixtures • Selection of the PWM output frequency from ETS, from 250 Hz to 6 kHz • Fade time in switching on and off, minimum and maximum brightness level, linear or logarithmic regulation curve can be set from ETS • Soft or instantaneous switching on and off, with adjustable delay • Configuration of the behaviour after power supply recovery, bus ON/OFF, download via ETS • Channels can be set from ETS as independent, in parallel or with copy function from another channel • Blocking function, forced operation, stair light, scenarios, night, counter and logic functions for each channel, can be set from ETS • Alarm for power failure • Auxiliary output function via relay (external) with status indication via KNX • Installer mode (with active KNX bus): pressing the programming button for about 2 seconds activates/deactivates the flashing every 1 s of the LED programming and load CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKGDXTPXLVM##.knxprod (## = release). Available languages: English, French, German, Italian.
