KNX dimmer 2 CH 12-48 Vdc Monocrome

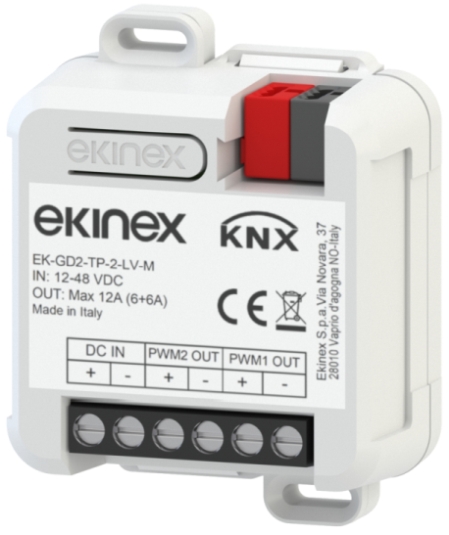

ORDERING CODE EK-GD2-TP-2-LV-M DESCRIPTION The 2-channel KNX 12/24/48 Vdc dimmer ekinex EK-GD2-TP-2-LV-M allows the brightness control in PWM mode of LED loads. Designed specifically for dimmable LED strips and loads, it is compatible with the KNX system and suitable for monochromatic strips. Installation is simple via DIN rail mounting, ensuring perfect integration into electrical panels. The device has an integrated bus communication module with SELV voltage 30 Vdc, KNX certified. FUNCTIONS / CHARACTERISTICS • ON/OFF control and regulation of the light intensity of single or grouped lighting fixtures • Selection of the PWM output frequency from ETS, from 250 Hz to 6 kHz • Fade time when switching on and off, minimum and maximum brightness level, linear or logarithmic regulation curve can be set from ETS • Soft or instantaneous switching on and off, with adjustable delay • Possibility of connecting the outputs in parallel to increase the output power • Configuration of the behaviour after power recovery, bus ON/OFF, download via ETS • Channels can be set from ETS as independent, in parallel or with copy function from another channel • Blocking function, forced operation, stair light, scenarios, night, counter and logic functions for each channel, can be set from ETS • Alarm for power failure • Auxiliary output function via relay (external) with status indication via KNX • Installer mode (with active KNX bus): pressing the programming button for about 2 seconds activates/deactivates the flashing every 1 s of the programming LED and the load CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKGDXTPXLVM##.knxprod (## = release). Available languages: English, French, German, Italian.
