KNX dimmer 90-230 Vac 4 channels Neutro

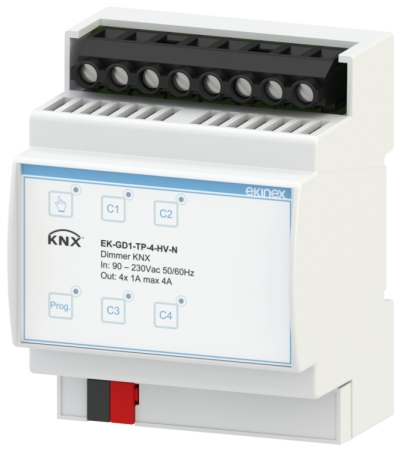

ORDERING CODE EK-GD1-TP-4-HV-N DESCRIPTION KNX bus device with phase cut dimmer function powered at 90-230 Vac with 4 channels and common neutral. Allows the brightness control of light loads with supply voltage 90 - 230 Vac at 50/60 Hz. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation. FUNCTIONS / CHARACTERISTICS • ON/OFF switching and brightness regulation of single or groups of lighting devices • Logical gates and forced mode for each channel • Manual control by membrane pushbuttons • Status feedback of output channels through LEDs • Switching pushbutton manual/automatic mode • Block function for each channel • Time scheduling: switching delay for on and off • Integration in scenarios • ON/OFF control and regulation of the luminous intensity of single or group lighting fixtures • Fade time on and off, minimum and maximum brightness level, linear or logarithmic regulation curve settable via ETS • Soft or instant on and off, with settable delay • Configuration of behavior after power recovery, bus ON/OFF, download via ETS • Channels settable via ETS as independent, in parallel or with copy function from another channel • Phase cut type setting selectable via ETS • Status indication of the outputs through LEDs • Block function, forced operation, staircase light, scenarios, night, counter and logic functions for each channel, settable by ETS • Alarm for power failure • Auxiliary output function with status advice via KNX • Manual command via membrane buttons and for local ON/OFF test of channels 1-2-3-4 (if KNX bus is active). CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKGDXTPXHV##.knxprod (## = release). Available languages: English, French, German, Italian.
