KNX ENO Gateway 634

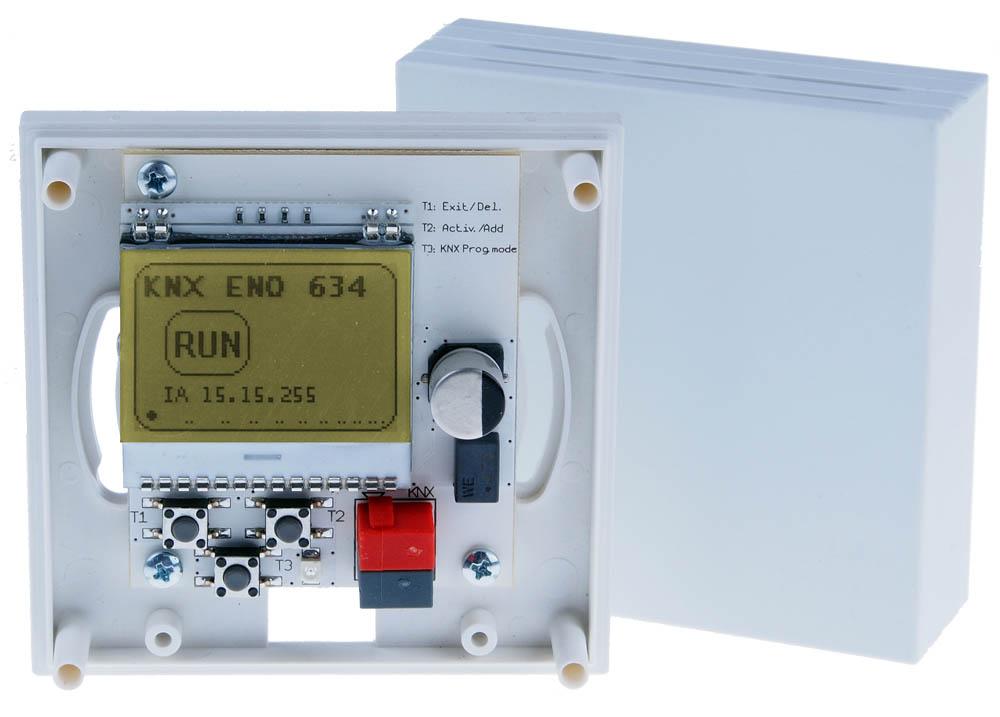

The Weinzierl KNX ENO 634 serves as a bidirectional gateway between EnOcean radio devices and the KNX bus. With this device, commands and measured values of EnOcean wireless sensors can be transferred to the KNX bus, for example, to control KNX actuators. Also EnOcean wireless actuators can be controlled via KNX. In addition the gateway supports logical and control functions and has a radio repeater included. The KNX ENO 634 is organized in 32 channels. Each channel can be assigned to one of the following functions: Link to sensors: -Push buttons (switching, dimming, shutter, scene) - Window contacts and handles Access card and other switches - Temperature, humidity and light sensors - Presence sensors - Gas and environmental sensors (weather station) - Room control devices - Automated counter devices - Digital inputs Link to actuators: - Switch - Dimmer - Shutter - HVAC actuators (valves) Time control / logic: - Switch-on delay - Switch-off delay - Gates (e.g. AND, OR, XOR) - Flip-flop (Toggle) Regulation / room control: - Two point controller - Continuous regulator - mHeat requisition - Lighting control Special (Trigger, Valuator, Watchdog) The configuration of the device and the channels is done using the ETS software via the KNX bus. For the linking of the wireless components the keys and the display in the device are used.
