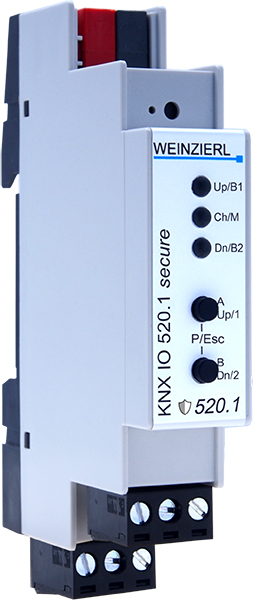

KNX IO 520.1 secure

The KNX IO 520.1 secure is a compact shutter actuator with two additional binary inputs. The actuator is used to control a blind, a shutter or a window drive. The relay contacts are electrically interlocked. The inputs can be connected to conventional switches with an external voltage of 12 to 230 V. In the unconfigured state the binary inputs control the actuator channel. Via commissioning the device using ETS® software the binary inputs can be used independently. Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output and input channels the device includes 16 independent functions for logic, timer, comparison or calculation. Furthermore, direct control with ETS is possible without download. The device supports KNX Data Security.
