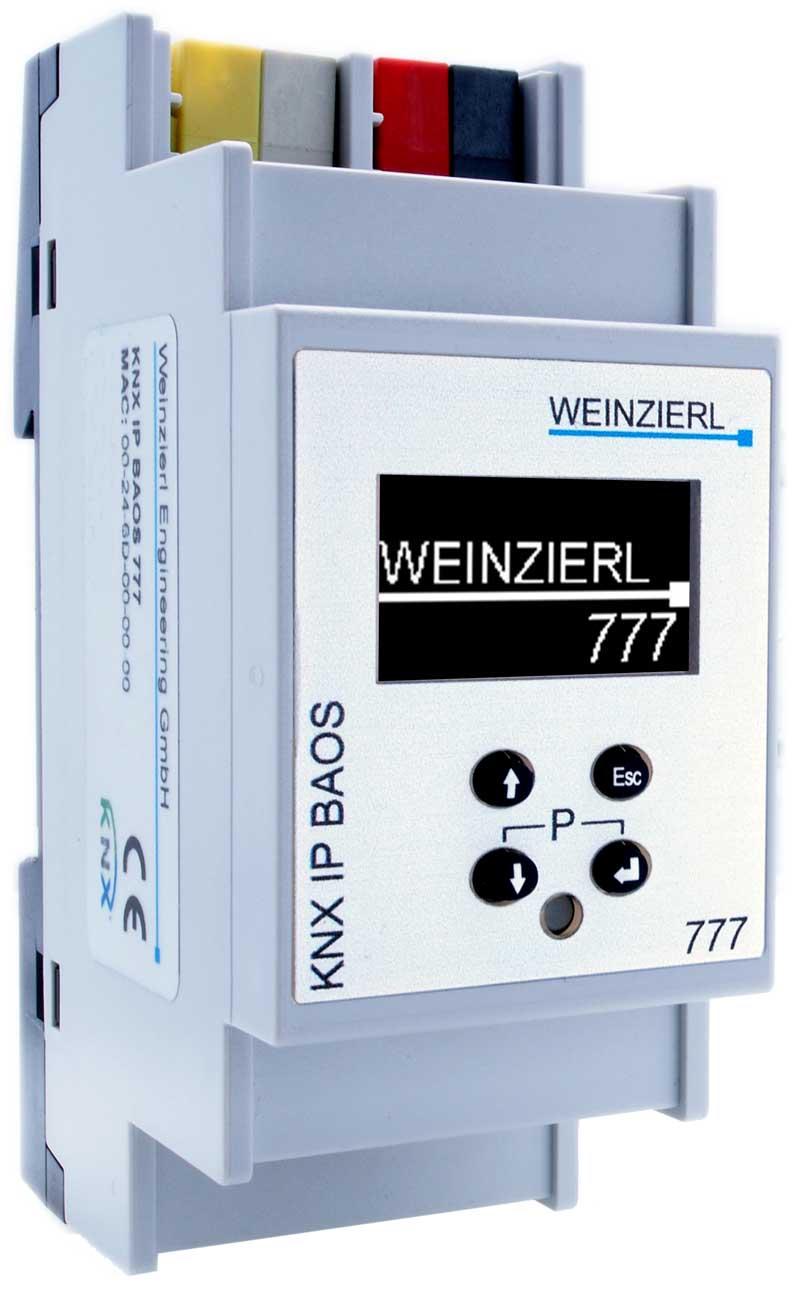

KNX IP BAOS 777

The Weinzierl KNX IP BAOS 777 is used as an interface to connect to KNX both on the telegram level (KNXnet/IP Tunneling) and on datapoint level (KNX Application Layer) with up to 2000 communication objects (when using the generic product database). BAOS stands for “Bus Access and ObjectServer”. The connection is made through LAN (IP). The object server can be accessed through TCP/IP or UDP/IP via the KNX Binary Protocol V2.1. Alternatively, the object server can be accessed through Representational State Transfer (RESTful) services and Web Services based on Java Script Object Notation (JSON). The device is compatible with ETS 4.2 or higher.
