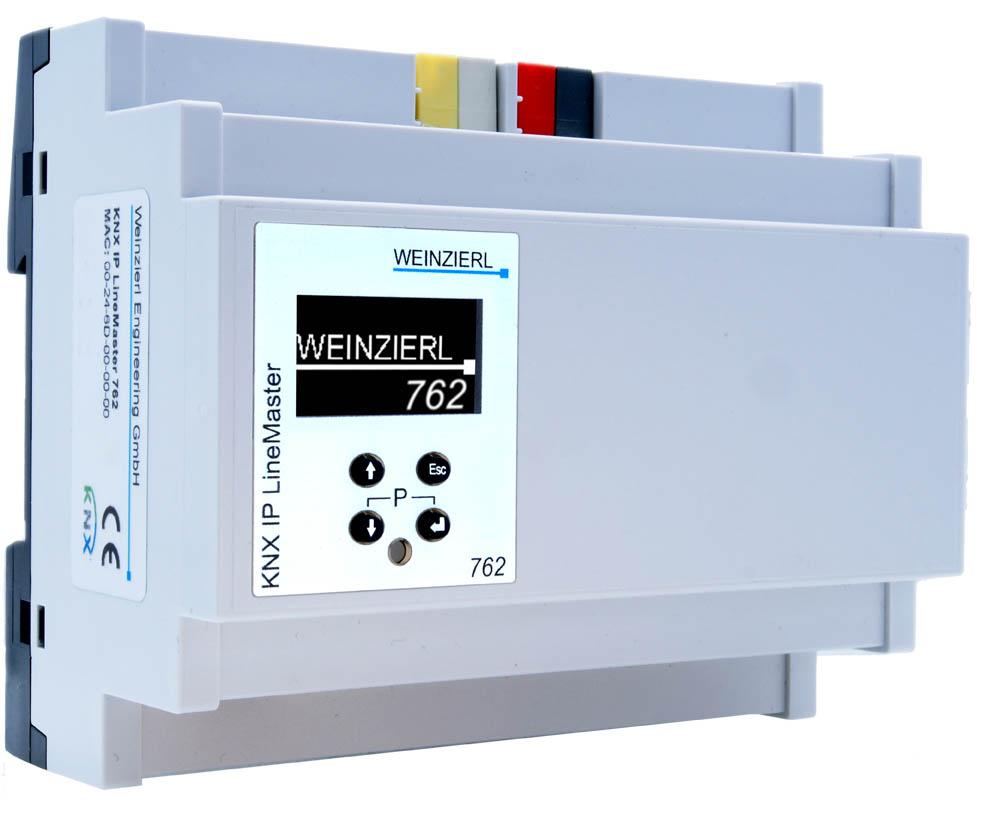

KNX IP LineMaster 762

The Weinzierl KNX IP LineMaster 762 combines the essential functions of a KNX bus line: - Power supply with choke, - KNX IP Router and - KNX IP Interface with a small footprint of only 6 units (108 mm). The KNX IP Router in the LineMaster allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone. In addition this device is suited to connect a PC to the KNX network e.g. for ETS® programming. The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively. This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part. The KNX IP LineMaster has a filter table for main group 0..31 and is able to buffer up to 150 telegrams. An easy to read OLED display on the front panel enables the user to display the operating parameters locally on the device.
