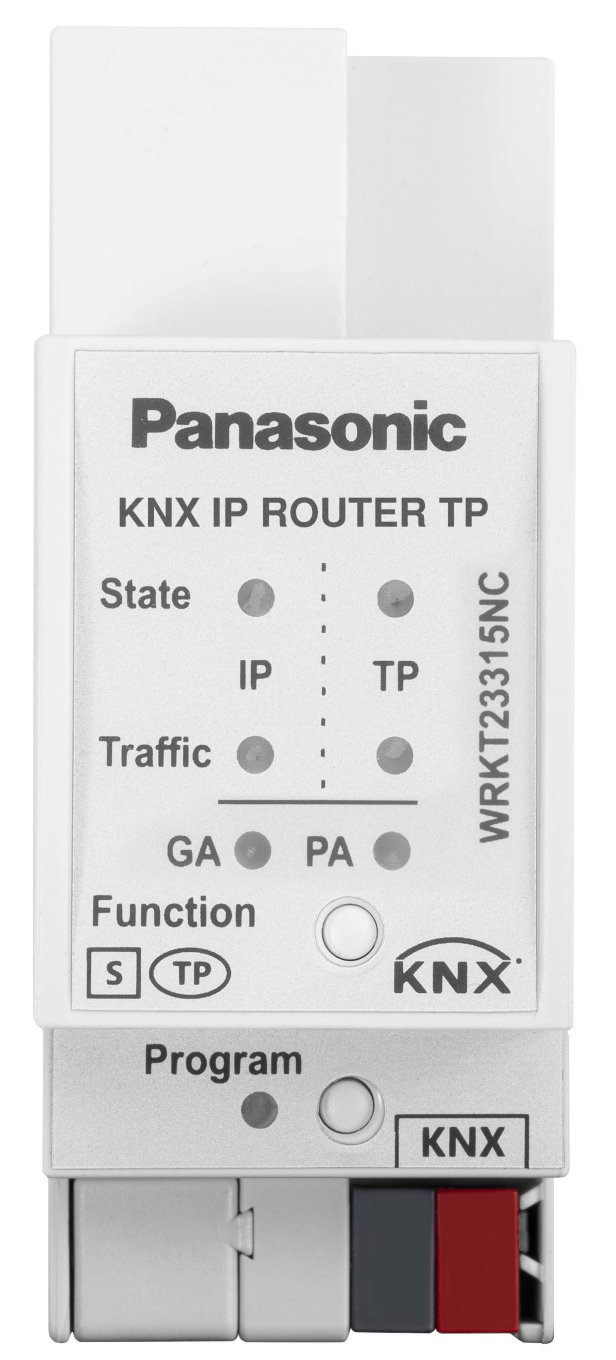

KNX IP ROUTER

The IP router connects both media KNX IP and KNX TP. As KNX IP Router, it couples KNX IP/Ethernet and TP bus system. KNXnet/IP routing and tunnelling are supported. The device is able to filter the traffic according to the installation place in the bus system hierarchy and according to the built-in filter tables for group-oriented communication. Configuring from the subline can be disabled. For KNX devices, device provides commissioning, configuring, visualization, protocolling and diagnostic operation. Operational and filtering states, malfunction and faulty communication are indicated by LEDs. To ease commissioning by short-time access to other lines, filtering can be temporarily deactivated on a single Function button press. Long messages with up to 240 bytes APDU length are supported. The device is shown in the network.
