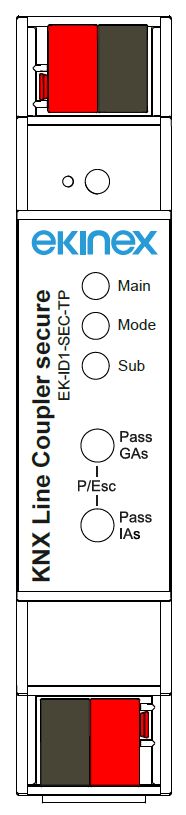

KNX Line Coupler secure

ORDERING CODE
EK-ID1-SEC-TP

DESCRIPTION
Secure KNX line coupler with a compact design. Connects two KNX bus segments (e.g., a KNX line to a KNX area). It features an integrated KNX bus communication module and is designed for 35 mm DIN rail mounting. Power is supplied via the KNX bus.

FUNCTIONS / CHARACTERISTICS
KNX
- Medium TP/TP
- KNX Security (AES-128) (incl. Security Proxy)
- KNX Segment Coupler
- Extended filter table for main group 0…31

Controls and indicators
- 2 buttons and 3 LEDs (multicolor)
- KNX programming button with LED (red)

Technical data
Power supply
- 30 Vdc from KNX bus line
- Current consumption: KNX main line approx. 5 mA, KNX sub line approx. 3 mA

Connectors
- Connector for KNX TP main line (red/black)
- Connector for KNX TP sub line (red/black)

Environmental conditions
- Operating temperature: - 5 ... + 45 °C
- Non-operating ambient temp.: - 25 ... + 70 °C
- Relative humidity: 5 ... 93% not condensing

Other characteristics
- Housing in plastic material (PC)
- Mounting on 35 mm rail (according to EN 60715)
- Protection degree IP20 (installed device, according to EN 60529)
- Appliance class III (according to EN 60664-1)
- Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)
- 1 modular units (1 unit = 18 mm)
- Weight 40 g
- Dimensions (WxHxD): 17.8 x 90 x 60 mm

SUPPLY
The supply includes a terminal for connection to the KNX bus line.

CONFIGURATION AND COMMISSIONING

The application program for ETS is different for ETS 5 or ETS 6.

- ETS 5: APEKID1SECTP-5##.knxprod (## = version).

- ETS 6: APEKID1SECTP##.knxprod (## = version).
