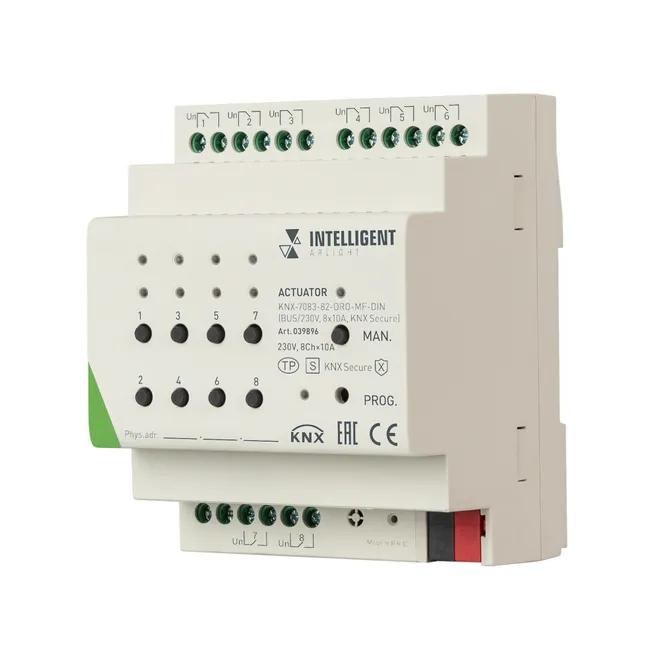

KNX Multi-function actuator, 8 channel with KNX Secure

Multifunctional KNX actuator – a universal device for controlling loads, blinds/shutters, and fan coil units. Features 8 configurable control outputs, which can be arranged as: 8 channels at 10A each, or 4 channels for AC blind drives, or 2 channels for DC drives, or 2 fan coil channels, or 2 valve control channels. Supports the standard KNX protocol and is compatible with certified KNX equipment from various manufacturers, including ABB, Schneider Electric, Siemens, Zennio, and others. Power supply: DC 21–30V from the data bus. Maximum switching current per relay output: 10A. Device dimensions: 72×90×64 mm. DIN-rail mounting.
